Diax S180 180Kg Surface Mag Lock Monitored

Diax S180 180Kg Surface Mag Lock Monitored
  Zoom
Our Price:  £40.88
List Price:  £58.40
Saving Of:  £17.52 (30%)
(Exc. 20% VAT)(£49.06 Inc. VAT)
+

Catalogue No:  S180
Brand:  Diax

Current Item:



Click for delivery info

Diax


Download Data Sheet



Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

S180

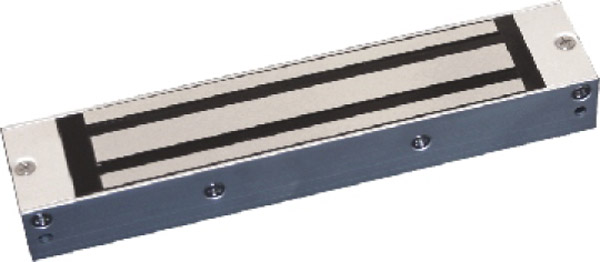

The S180 is a compact surface magnetic lock with a holding force of 180Kg.

The unit is 12/24Vdc selectable, and is suitable for locking cupboard doors, drawers, windows and doors which are low security but need a degree of locking.

Lock status monitoring is standard.

Material: Aluminium
Voltage: 12/24Vdc
Current: 630mA @ 12Vdc, 315mA @ 24Vdc
Dimensions: 168 x 33 x 20mm
Temperature: -20°C to +50°C

Download Installation Manual

Table of locks

Code Description Kg Holding Monitoring Dimensions Voltage Current
M180 Mortice Magnet 180Kg No 206 x 32 x 25mm 12/24Vdc 630/315mA
P335ER Mortice Magnet, Multi-Fix 300Kg Yes 215 x 35 x 25mm 12/24Vdc 630/315mA
M300(M) Mortice Magnet 300Kg Yes 229 x 38 x 27mm 12/24Vdc 630/315mA
M400(M) Mortice Magnet 400Kg Yes
229 x 44 x 30mm 12/24Vdc 630/315mA
M500 Mortice Magnet 500Kg No 288 x 64 x 38mm 12/24Vdc 630/315mA
S180 Surface Magnet 180Kg Yes 168 x 33 x 20mm 12/24Vdc 630/315mA
S300(M) Surface Magnet 300Kg Yes 253 x 46 x 27mm 12/24Vdc 630/315mA
SD300(M) Surface Double Magnet 300Kg per side Yes
506 x 46 x 27mm 12/24Vdc 630/315mA
S400(M) Surface Magnet 400Kg Yes 253 x 49 x 29mm 12/24Vdc 630/315mA
S500(M) Surface Magnet 500Kg Yes 272 x 65 x 41mm 12/24Vdc 630/315mA
SD500(M) Surface Double Magnet 500Kg per side Yes
544 x 65 x 41mm 12/24Vdc 630/315mA
