Diax SD300M 300Kg Surface Double Mag Lock

Diax SD300M 300Kg Surface Double Mag Lock
Our Price:  £118.43
List Price:  £169.18
Saving Of:  £50.75 (30%)
(Exc. 20% VAT)(£142.12 Inc. VAT)

Catalogue No:  SD300M
Brand:  Diax

Current Item:


Click for delivery info

Diax Maglock Z&L Mounting Brackets SelectionDiax Maglock Z&L Mounting Brackets Selection
Thread Lock for securing Maglock fixingsThread Lock for securing Maglock fixings


Download Data Sheet

Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

SD300 & SD500 Series

The SD300(M) and SD500(M) are literally doubles of the
S300(M) and S500(M).

The S300 (often referred to as the “mini magnet”) is the most widely used surface magnetic lock, with a holding force
of 300Kg.

S300 is a surface mount magnetic lock with a holding force of 300kg. Ideal for general access control on standard doors. A monitored version (S300M) is available, as are double magnets for double-doors (SD300 & SD300M)

The unit is 12/24Vdc selectable, and provides locking to internal doors. New safety features include rounded ABS
ends, and security ropes to prevent the magnet falling from the frame.

The S300M includes lock status monitoring, and is available as “doubles” for double-doors.

Material: Aluminium
Voltage: 12/24Vdc
Current: 630mA @ 12Vdc, 315mA @ 24Vdc

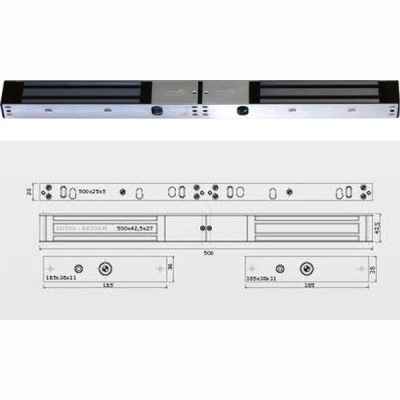

Dimensions: 253 x 46 x 27mm (506 x 46 x 27mm double)
Temperature: -20°C to +50°C

Download Installation Manual

Table of locks

Code Description Kg Holding Monitoring Dimensions Voltage Current
M180 Mortice Magnet 180Kg No 206 x 32 x 25mm 12/24Vdc 630/315mA
P335ER Mortice Magnet, Multi-Fix 300Kg Yes 215 x 35 x 25mm 12/24Vdc 630/315mA
M300(M) Mortice Magnet 300Kg Yes 229 x 38 x 27mm 12/24Vdc 630/315mA
M400(M) Mortice Magnet 400Kg Yes
229 x 44 x 30mm 12/24Vdc 630/315mA
M500 Mortice Magnet 500Kg No 288 x 64 x 38mm 12/24Vdc 630/315mA
S180 Surface Magnet 180Kg Yes 168 x 33 x 20mm 12/24Vdc 630/315mA
S300(M) Surface Magnet 300Kg Yes 253 x 46 x 27mm 12/24Vdc 630/315mA
SD300(M) Surface Double Magnet 300Kg per side Yes
506 x 46 x 27mm 12/24Vdc 630/315mA
S400(M) Surface Magnet 400Kg Yes 253 x 49 x 29mm 12/24Vdc 630/315mA
S500(M) Surface Magnet 500Kg Yes 272 x 65 x 41mm 12/24Vdc 630/315mA
SD500(M) Surface Double Magnet 500Kg per side Yes
544 x 65 x 41mm 12/24Vdc 630/315mA
