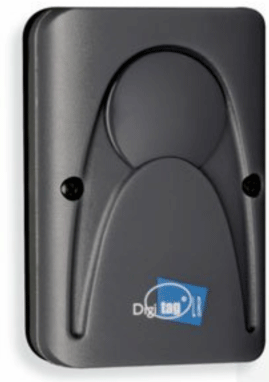

Long Range Active Access Reader

Long Range Active Access Reader
  Zoom
Our Price:  £59.86
List Price:  £90.01
Saving Of:  £30.15 (33%)
(Exc. 20% VAT)(£71.83 Inc. VAT)
+
Variants:

Catalogue No:  DTRR1434R
Brand:  Digitag-LR

Current Item:



Click for delivery info

Digitag-LR

Download Manual


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

DTRR1434 Ultra Long Range Access Control Reader

The DIGITAG LR Receiver is designed to be used with the DIGITAG LR range of active transmitters from the CDVI Group. Maximum read range is around 15 metres and the receiver has an attenuation control for smaller read ranges. The tags are long life types with a small replaceable battery. The receiver is for internal or external use and is ideal for hands free entry, disabled entrance control and vehicular access.

DTRR1434 Weigand output variant

DTRR1434 is a Weigand output variant reader and requires a Weigand access controller to function, designed to replace the standard PROX Weigand reader and provide long range access control solutions, number of cards is limited by controller selected.

DTRR1434R Self contained hands free reader controller variant

DTRR1434R is a standalone reader providing clean contact changeover output for up to 30 cards stored within an internal memory within the reader

Hands-Free Access Control

 Digitag LR is an innovative product range offering users real “hands-free” access control at affordable prices.

Digitag LR is ideally suited for use in hospitals, residential homes, car parks, areas of stock movement or simply where the convenience of hands-free access control is preferred. The range attenuation, together with the ease of installation and the flexibility of being industry compatible has made Digitag LR a leader in this field.

DTRR1434R is a standalone reader providing clean contact changeover output for up to 30 cards stored within an internal memory within the reader

Clever innovation has removed the traditional objections of hands-free active tags (battery life and cost).

Technical Specification Weigand Receiver

  • Construction: ABS
  • Dimensions: 90 x 60 x 22mm
  • Temperature: -20°C to +70°C
  • Rating: IP-55
  • Voltage 12-30Vdc
  • Current 40mA
  • Frequency 433.92Mhz
  • Range 15m nominal
  • Control 1 High/low gain
  • Control 2 10 point attenuator
  • LEDs 1 X green 1 x red
  • Antenna internal helical
  • Sensitivity -102dBm
  • TX buffer 20
  • Tags in field 20
  • Weigand industry standard output
  • Audible and visual signal

Technical Specification Standalone Receiver

  • Construction: ABS
  • Dimensions: 90 x 60 x 22mm
  • Temperature: -20°C to +70°C
  • Rating: IP-55
  • Voltage 12-30Vdc
  • Current 40mA
  • Frequency 433.92Mhz
  • Range 15m nominal
  • Control 1 High/low gain
  • Control 2 10 point attenuator
  • LEDs 1 X green 1 x red
  • Antenna internal helical
  • Sensitivity -102dBm
  • TX buffer 20
  • Tags in field 20
  • 30 users
  • Timed relay output
  • Exit button input
  • Audible and visual signal

Technical Specification Transmitter

  • Supply 3V
  • Battery CR2032
  • Frequency 433.92MHz
  • Modulation FSK
  • E.r.p 5uW
  • Dimensions 70 x 35 x 9mm



DIGITAG LR

The DIGITAG LR transmitters are microprocessor based battery powered transmitters for use with the Digitag LR receiver range.

These devices transmit a coded secure signal periodically and this signal is decoded and processed when brought in to range of a DIGITAG LR receiver unit.

The design follows all the constraints of the appropriate European Directives. The DIGITAG LR receiver is also equipped with the industry standard access control interfaces Wiegand 26 and Clock & Data. This allows the DIGITAG LR to be used on just about all access control systems available today.

By providing a changeable battery, the tags do not have a limited life so under normal wear & tear conditions they will provide many years of activity.
