GTP003 Passive Baluns
Product Overview

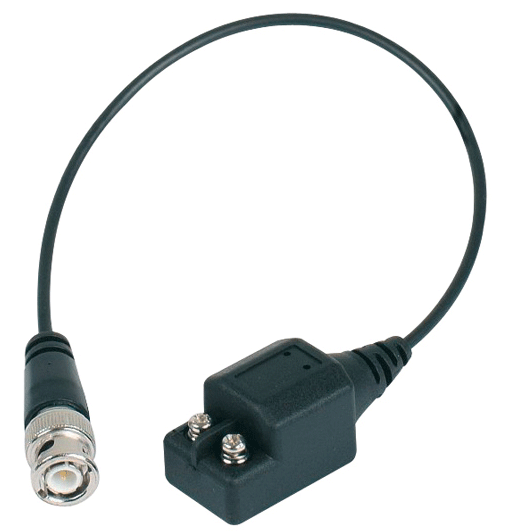

Passive Video & Audio Balun, BNC Male to Terminal Block, Black Metal Finish.
Key Features
Genie’s “Smart Cabling” passive Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. UTP cable is more flexible than traditional coaxial cable, is lower cost and has better transmission qualities. Passive baluns do not require any power source and match the 75Ω impedance of coaxial cable to the 100Ω impedance of UTP cable. Passive Baluns can transmit and receive full motion composite video signals up to 300 metres in Colour and 600 metres in Monochrome.
- Impedance Matching 75 Coaxial to 100 Twisted Pair Cable
- Extra Interference Rejection Circuitry Built-in
- Transmits/Receives Composite Video Signals
- Transmission Distances – 400m in Colour, 600m in Monochrome
- Fitted with 250mm Mini-Coaxial Lead
- Ideal for Use with Pan, Tilt & Zoom Cameras
- BNC Male to Terminal Block Connections
- For use with Category 5e & 6 UTP (Unshielded Twisted Pair) Cable.
- Wire Gauge 24AWG
- Uses One Twisted Pair For a Single Composite Video Signal
- No External Power Required
Technical Specification
Model Number
| GTP003 |
| Dimension (Wx H x D) | 88 x 38 x 27mm |
