GTP005 Passive Baluns
Product Overview

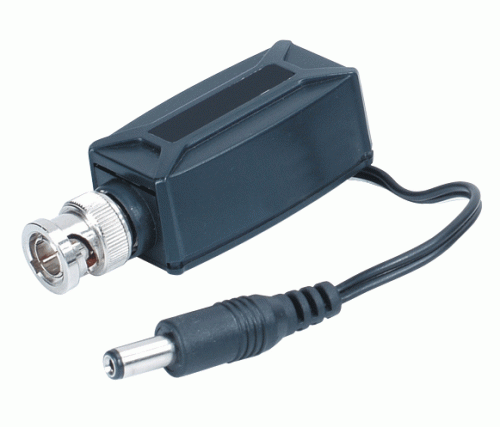

Passive Video Balun, BNC Male & DC 2.1mm Power Plug to RJ45 Female, Black ABS Finish.
Key Features
Genie’s “Smart Cabling” passive Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. UTP cable is more flexible than traditional coaxial cable, is lower cost and has better transmission qualities. Passive baluns do not require any power source and match the 75Ω impedance of coaxial cable to the 100Ω impedance of UTP cable. Passive Baluns can transmit and receive full motion composite video signals up to 300 metres in Colour and 600 metres in Monochrome.
Technicals Pecification
Model Number
| GTP005
|
| Dimension (Wx H x D) | 69 x 25 x 22mm |
