GTP005KT Passive Baluns
Product Overview

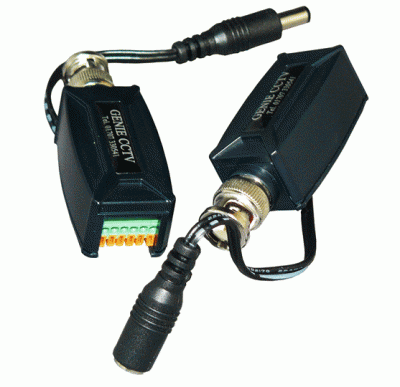

Passive Video Balun Kit, BNC to terminal block with power
PPP
Key Features
Genie’s “Smart Cabling” passive Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. UTP cable is more flexible than traditional coaxial cable, is lower cost and has better transmission qualities. Passive baluns do not require any power source and match the 75Ω impedance of coaxial cable to the 100Ω impedance of UTP cable. Passive Baluns can transmit and receive full motion composite video signals up to 300 metres in Colour and 600 metres in Monochrome.
- Impedance Matching 75Ω Coaxial to 100Ω Twisted Pair Cable
- Transmits/receives Composite Video Signals
- Transmits Video and 12V dc Power Up to a Distance of 50 Metres
- One Balun is Supplied with 2.1mm Power Plug Connector and One Supplied with A 2.1mm Power Jack Connector
- BNC Male to terminal block for Video Connection
- For use with Category 5, 5e & 6 UTP (Unshielded Twisted Pair) Cable. Wire Gauge 24awg
- Uses One Twisted Pair for a Single Composite Video Signal
- Uses One Twisted Pair for 12V dc Power
Technical Specification
Model Number
| GTP005KT
|
| Dimension (Wx H x D) | 69 x 25 x 22mm |
