UE01 Single Port USB Extender On Category 5e UTP Cable
Product Overview
UE01, Passive System, Extend USB Device up to 50m, Includes Local and Remote Units, LED Indication When There is Insufficient Current to Send Data, Optional DC 5V Power Adapter for Remote Unit.
Key Features
- Extend a Single USB Device up to 50 Metres over Category 5e UTP Cable
- USB 1.1 Compliant
- Passive System – No External Power Required

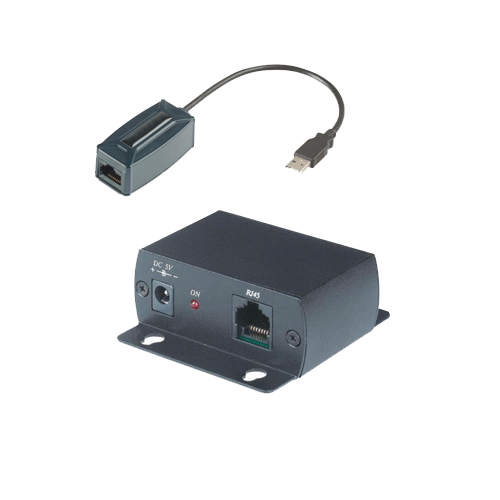

- Includes Local and Remote Units
- LED IndicationWhenThere is Insufficient Current to Send Data
- Optional DC 5V Power Adapter for Remote Unit
- Extend USB Peripheral Devices, such as Keyboard, Mouse, IP Camera, etc.
Technical Specification
Model Number
| UE01 |
| Unit | Local |
| Port Type | 1 Port USB (Type A) |
| Connection | RJ45 Connection |
| DC Jack | - |
| Power Option | DC 5V 1.2A |
| Link Connector | RJ45 |
| Distance | 50 Meters (Max.) |
| Cable | CAT5/5e/6 Cable |
| Speed | 12Mbps/1.5Mbps (Max) |
| Operating Conditions | Operation: 0 to 55 % Storage: -20 TO 85 % Humidity: up to 95% |
| Dimensions (W x H x D) | 69mm x 25mm x 22mm |
| Weight | 35g |
| Unit | Remote |
| Port Type | 1 Port USB (Type A) |
| Connection | RJ45 Connection |
| DC Jack | DC Jack for Power |
| Power Option | DC 5V 1.2A |
| Link Connector | RJ45 |
| Distance | 50 Meters (Max.) |
| Cable | CAT5/5e/6 Cable |
| Speed | 12Mbps/1.5Mbps (Max) |
| Operating Conditions | Operation: 0 to 55 % Storage: -20 TO 85 % Humidity: up to 95% Storage: -20 TO 85 % Humidity: up to 95% |
| Dimensions (W x H x D) | 43mm x 67mm x 27mm |
| Weight | 120g |
| | |
