Global Fire EN54-4 Chassis Only and Plastic Case Power Supplies

Global Fire EN54-4 Chassis Only and Plastic Case Power Supplies
  Zoom
Our Price:  £68.43
List Price:  £79.40
Saving Of:  £10.97 (14%)
(Exc. 20% VAT)(£82.12 Inc. VAT)
+
Variants:
Colour:

Catalogue No:  GFE-BCM-1024VDC
Brand:  Global Fire

Current Item:



Click for delivery info

Global Fire


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

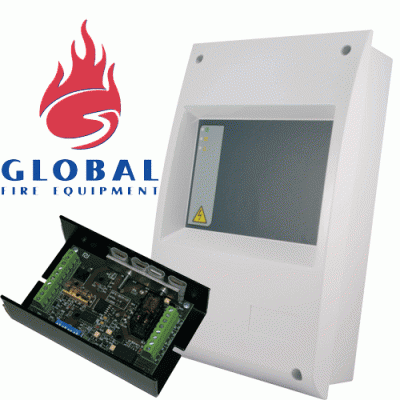

GFE - BCM EN54 pt. 4 Power Supplies

These units are fully EN-54 pt. 4 compliant power supplies and battery chargers which also incorporate, in some models, a loop interface that can be used with all of GFE’s addressable panels. It will monitor all fault conditions including: charger fault, charger voltage level, input voltage supply fault and supply removal. It can be supplied as a standalone module or boxed in an ABS plastic enclosure, including a 28V DC @ 1.7 or 2.4 Amp PSU. The standalone unit is chassis mounting and supplied without a case, has 10A current rating and is supplied complete with heat dissipation.

Part numbers

GFE-BCM-1024VDC = 24V 10A Chassis power supply - not supplied with a case

 GFE-BCM-3-1.7 = 28V 1.7A power supply supplied in plastic case with battery compartment

GFE-BCM-3-2.4 = 28V 2.4A power supply supplied in plastic case with battery compartment

GFE-BCM-3-I/O-1.7 = 28V 1.7A power supply with addressable I/O supplied in plastic case with battery compartment

GFE-BCM-3-I/O-2.4 = 28V 2.4A power supply with addressable I/O supplied in plastic case with battery compartment

FEATURES

  • Battery Charger Monitored by Addressable Panel
  • Fault Relay Output
  • Relay O/P Controlled Externally
  • Relay O/P Remotely Controlled by Panel
  • Low Battery Voltage Shutdown
  • Reverse Polarity Protection
  • Battery Charger Current Regulated
  • LED indicators: AC ON, Battery & Charger Fault
  • Boxed Unit inc. PSU and Battery Compartment
  • Fully Compliant with EN54 part 4
