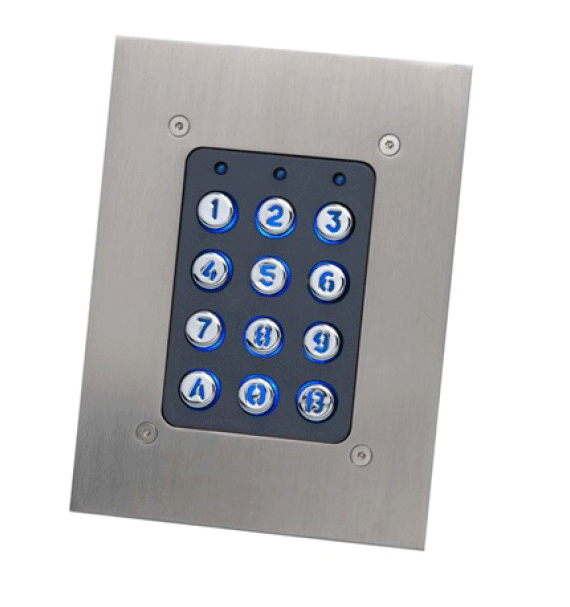

Genie Access SAPKP-SSF2 Proximity Keypad - Flush Mount

Zoom

Our Price:	£122.28
List Price:	~~£248.64~~
Saving Of:	£126.36 (51%)

(Exc. 20% VAT)(£146.74 Inc. VAT)

Catalogue No: SAPKP-SSF2
Brand: Genie Access

Availability:

Delivery Information

Genie Access

SAPKP-SSF2

Key Features

Stand Alone Proximity Keypad
IP 65 Rated
Built In EM 4100 Prox Reader
Bi-Directional CODIX Output
Backlit Keys
Status LED's
Audible and Visual Feedback
Simple Programming
Up to 99 Users

Technical Specification

Proximity Keypad - Flush Mount
Operating Voltage
Operating Current
Outputs
Output Modes
Door Open Time
No.of User Codes
Code Length
Proximity Reader
Connections
IP Rating
Operating Temperature
Operating Humidity
Material
Finish
Keypad
Illumination
Faceplate Dimensions (W x H x D)
Backbox Dimensions (W x H x D)

12/24V AC/DC
130mA
2 Relays (10A & 2A)
Pulse / Latch
1-99 Seconds, Selectable
99 Unique Codes
1-8 Digits
Yes, EM 4100 Format
3 Wire Codix Bus - (Phoenix Terminals)
IP65
-25ºC to 70ºC
0 to 95% (Non-Condensing)
Stainless Steel
Brushed Stainless Steel
Metal, Backlit Buttons
Blue
105 x 140 x 1.5 mm
84 x 108 x 33 mm
