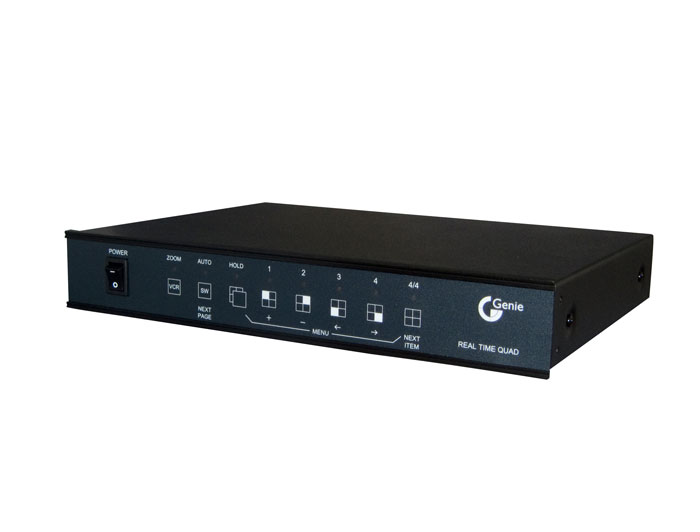

GQC4Z High Resolution Colour Quad Processor
Product Overview
Colour Real Time Quad Processor with Loop Through Alarm Inputs/Output, Adjustable Dwell Time, Security Lockout, 12V DC / 24V AC 7W, Resolution 1024 x 512, Zoom Facility.
Key Features
- High Resolution 1024 x 512
- Auto Switching Between PAL & NTSC
- On Screen Menu Setup
- Security Lockout
- Time and Date Generator with Location Setting
- Alarm Function
Technical Specification
Model Number
| GQC4Z
|
| Video Input | 4 xCameras, 1 x VCR
|
Video Output
| 1 x Monitor, 1 x VCR |
Picture Update Rate
| 50 Fields Per Second
|
Titles
| 8Character Titles PerCamera
|
Video Loss Detection
| Yes
|
Digital Memory
| 1024 x 512
|
Playback Picture
| Quad
|
| Freeze Picture | Quad
|
| Sequencer | Quad
|
| Buzzer | Yes
|
Alarm Input
| 4 x NC or NOContacts
|
Alarm Output
| Either NC C or NO RelayContact " 24V DC
|
| Alarm Duration | 1 to 99 Seconds
|
Dwell Time
| 0 to 99 Seconds
|
Loop Out
| Yes
|
Power Source
| 12V DC or 24V AC 1A
|
Power Consumption
| 7 Watts
|
Operating Temperature
| 0°C to 50°C
|
Dimensions (W x H x D)
| 285 x 44 x 235 mm
|
Weight
| 2.5 kgs, Including PSU
|
