Relays & Timers

VHLD

VHLD is a delay module for use with fail-safe locking devices. After trigger, the unit will delay re-applying power until a pre-set time has elapsed.

.

Dimensions: 65 x 24 x 16mm (highest component)
Temperature: -20°C to +40°C
Rating: Internal use only

TPG1

TPG1 is a timer relay which provides a changeover contact which can be activated for a period of 0-20 seconds - the activation time is adjusted by a pot on the pcb.

.

.

.

.

 .

 .

Dimensions: 73 x 63 x 25mm (highest component)
Temperature: -20°C to +40°C
Rating: Internal use only

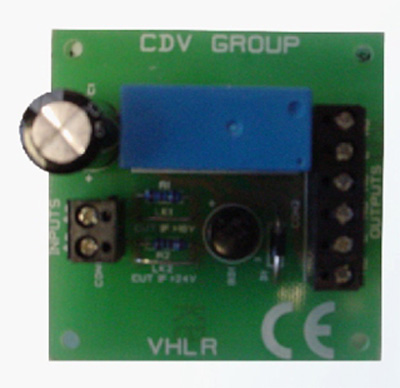

VHLR

VHLR is a convenient, universal relay to satisfy many switching requirements. It has a flexible input to trigger the coil, with dual changeover contacts rated at 5Amps for general purpose use. The unit is ideal for use as a fire alarm relay or controlling DC locking devices.

.

.

.

The trigger voltage operates from 12 to 28 Volts, DC or AC.
Dimensions: 60 x 60 x 26mm (highest component)
Temperature: -20°C to +40°C
Rating: Internal use only

TK160

TK160 is an extended timed relay which allows the selection of the relay to operate either between 0-60 seconds or 0-60 minutes. The simplicity and reliability of this unit makes it ideal for unlocking doors for a longer period.

.

.

.

.

Dimensions: 57 x 40 x 15mm (highest component)
Temperature: -20°C to +50°C
Rating: Internal use only

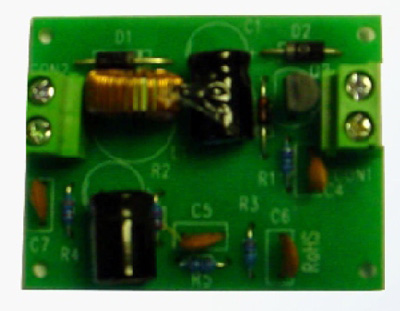

SM1228

SM1228 is a convenient voltage switcher which will accept any input voltage between 12Vdc and 24Vdc and produce an output voltage of 12Vdc. This unit is ideal where you have a 12Vdc lock, but only have a 24Vdc power source.

.

.

Dimensions: 47 x 36 x 15mm (highest component)
Temperature: -20°C to +50°C
Rating: Internal use only

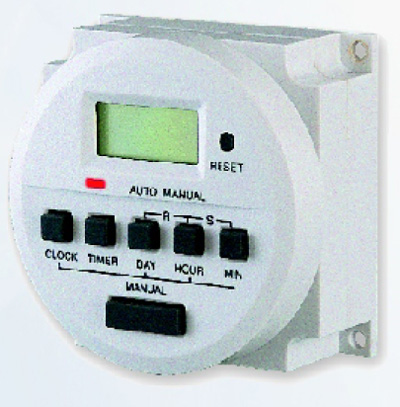

TH827

TH827 is a 7-day, 24 hour digital timer with 6 programmable on/off times each day.

Available as 240VAC (TH827) 12Vac/dc (TH827-12) or 24Vac/dc (TH827-24), this unit is ideal for providing “free-access” for doors which are electronically locked. The changeover contact is capable of 16Amp switching. An internal battery will store programmed times for up to 200 hours.

.

.

Models: TH827 (240VAC) TH827-12 (12Vac/dc) & TH827-24 (24Vac/dc)
Construction: ABS with LCD display
Dimensions: 60 x 60 x 34mm
Temperature: -20°C to +40°C
Rating: Internal use only

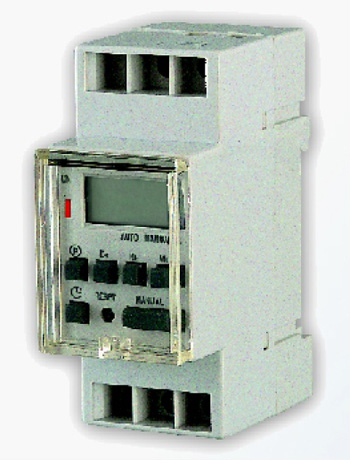

TH857

TH857 is a 7-day, 24 hour digital timer with 6 programmable on/off times each day.

Operating at 230Vac, this unit is ideal for providing “free-access” for doors which are electronically locked. The changeover contact is capable of 16Amp switching. An internal battery will store programmed times for up to 200 hours.

Models: TH857
Construction: ABS with LCD display
Dimensions: 86 x 36 x 65mm
Temperature: -20°C to +40°C
Rating: Internal use only
