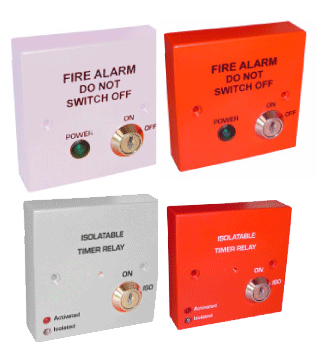

Isolators, Timers and secure mains isolator selection

Fire System Secure Mains Voltage Safety Isolator – White or Red

Mains voltage isolation switch suitable for use with fire alarm systems. Secure lockswitch (authorised person only) 4A Double pole switch.
See BS5839 Pt.1 2002 section 29.2

Order 400-210W - White

Order 400-210R - Red

Features

• Red flame retardant enclosure
• 240VAC 2 Pole switching (4A)
• Switch 80A Surge rating
• Neon power indicator
• Secure lockswitch
• key removable in both on or off position
• Supplied with matching backbox
• 20mm Fuse
• Clearly marked with suitable text
• UK Single gang form factor

Zone Detection Circuit Isolator – White or Red

Zone isolation switch, 24 V DC, with indicators and buzzer, mounted on a single gang plate with back box included.

Order 500-205W - White

Order 500-205R - Red

.

Zone  Detection  Circuit  Timed  Isolation  Unit  – White  or
Red

Zone isolation switch, 24 V DC, with automated time-out facility to reactivate circuit after 2, 4, 6,  8  0r  10  hours,  indicators  and  buzzer, mounted  on  a  single  gang  plate  with  back  box included.

Order 500-640W - White

Order 500-640R - Red

Fire System Output Delay  and  Isolation Unit  – White  or
Red

Output  isolation  switch,  24  V  DC,  with  selectable  time  delay  facility  from  0  to  5 minutes, indicators and buzzer, mounted on a single gang plate with back box included.

Order 500-200KSW - White

Order 500-200KSR - Red

This sophisticated product is designed primarily for controlling fire system output circuits and for managing fire system interlinks safely. It is particularly useful in larger systems or where a digital communicator needs to be controlled in the event of an unwanted alarm.

Features

• Red/White fire retardant enclosure
• Built in Buzzer
• LED indicators
• Lockswitch for authorised person only
• Key removable in ON position only
• Alarm delay timer (0-5mins)
• 2 X 8A contacts
• Different tone when timing down
• Ant-latch removes interlocks when linking panels
• 4 or 2 wire operation
• Microprocessor controlled
• Supplied with back box
• 16 to 32V operation
• Internal timer LED indicated minutes of delay
• Buzzer Mute option link
• Slow 30Sec. buzzer option link
• I/P can also trigger 5Sec. Pulse option link
• UK single gang form factor
• Supplied with backbox
