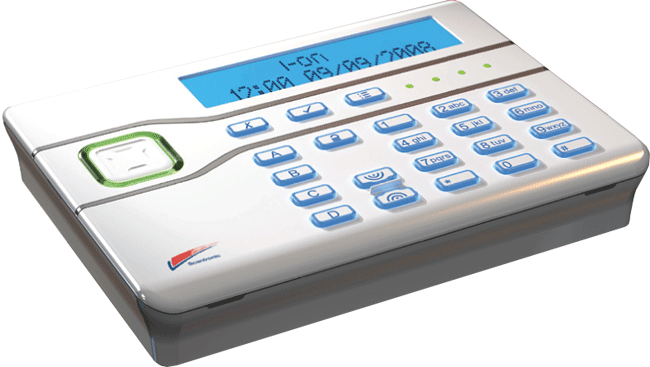

The i-kp01 is designed to work with the i-on16 & i-on40 control units. The keypad allows the user to set and unset the system, and installers to program the system.
The keypad has:
- A large backlit LCD display showing two lines of 20 alpha-numeric characters.
- Four LEDs show the setting status of partitions or levels.
- "A, B, C, D and Unset" keys provide quick setting and unsetting of the system. For the i-on40 these keys can be programmed by the installer to set any combination of partitions.
- A four way navigation key allows the installer and user to scroll through easy to follow menus.
- A built in proximity tag detector that reads all standard proximity tags, allowing users to set and unset the system without having to remember an access code.
Specifications
| Product name | I-KP01 |
| Sales number | I-KP01 |
| Environmental | Class II. |
| Operating temperature | Tested -10 to +55°C. |
| Humidity | |
| Dimensions: | 115 x 156 x 34, mm HxWxD |
| Keypad weight: | 0.32 kg |
| Case material | ABS |
| Security Grade | Grade 3. |
| Current Consumption | 65mA |
