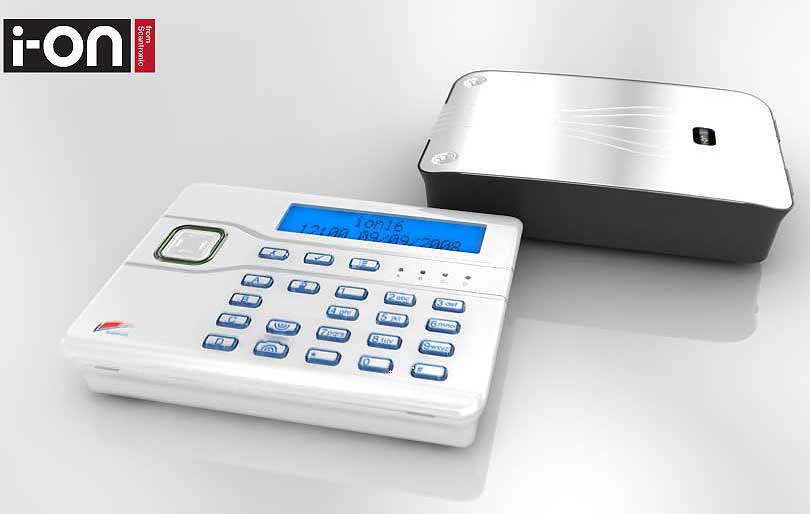

The control unit comprises an end station with remote keypads. The simple-to-install end station has an ABS plastic case which contains the radio transceiver, power supply and backup battery. Up to four keypads connect to the end station by standard alarm cable, allowing the end user to set and unset the system, and the installer to fully configure the control unit. The keypads also contain integral proximity tag readers, so that end users can control the system without having to remember access codes.
The control unit works with Cooper Security Ltd's 700 series 868MHz narrowband wireless peripherals.
During programming the installer can set up the system as either a part setting system with full set and three part sets, or a partitioned system where each of the four partitions has full set and a single part set.
The i-on40 offers a wide range of communication options. Plug-on modules provide connection to either the telephone system (PSTN), the mobile phone network (GSM) or the internet via Ethernet or GPRS. In addition, the control unit provides a set of output pins which can be used to drive stand-alone communicators.
To make the installation and maintenance simple, the control unit also provides Ethernet and USB connectors for attaching PCs or laptops. The control unit can be programmed using a standard web browser from an Ethernet connected laptop, or by Cooper Security's Downloader software using the on-board USB port. In addition, if the control unit is fitted with a PSTN module the installer can use Downloader for remote maintenance.
General
| Product name | i-on40. |
| Product Description | 40 zone hybrid endstation with remote keypads. |
| Manufacturer | Cooper Security Ltd. |
| Environmental | Class II. |
| Operating temperature | Tested -10 to +55°C. |
| Humidity | 0 to 75% RH, non-condensing. |
| Case material | ABS LG-AF342. |
Dimensions:
| End station | 384 x 245 x 94, mm HxWxD. |
| Keypad | 115 x 156 x 34, mm HxWxD |
Weight:
| End station | 2.2 kg (without stand-by battery). |
| Keypad | 0.26 kg |
Capacities
| Zones | 24 radio, 16 wired. |
| Outputs | 16 wired (comprising two voltage free contacts, 14 transistorised of which 12 are provided on two separate wiring harnesses). |
| | 8 radio (with suitable products such as the 770r Wireless Accessory Module). |
| Internal Clock | ±10 minutes over one year (depending on the accuracy of the mains supply frequency). |
| Remote controls | 50. |
| Panic Alarms | 50. |
| External Radio Sirens | 4 |
| Internal Radio Sounders | 8 |
| Log capacity | Up to 1,000 events, stored in flash memory (requires no support battery) |
Security
| Security Grade | Grade 2. |
| Radio detector differs | 16,777,214 (2 24 -2). |
| Radio Supervision | Programmable. |
| Access code | 4 digits, all four digits may be any number 0 to 9, giving 10,000 differs. |
| Number of access codes | 50 plus installer |
| Code blocking | Blocked for 90s after four incorrect codes in series. |
| Proximity tag differs | 4,294,967,296 (232) |
Radio
| Radio Section | Operating frequency 868.6625MHz Narrowband. |
| | EN 300 220-3. |
| | EN 300 330-2 |
| Transmitter range | The range of the transmitters compatible with this control unit depends on the environment in which they are installed. As a guideline, most transmitters will work up 200m range in free space conditions. |
Power Supply
| This product complies with the requirements of EN50131-6 Type A power supply at security grade 2 and environmental class II. |
| Mains power supply | 230VAC +10%/-15%, 170mA max, 50Hz. |
| End station psu | 13.7VDC, 1.5A max |
| End station consumption | 130mA min. 220mA max. |
| Communicator consumption | 50mA max |
| Keypad consumption | 30mA (backlight off) |
| | 45mA (backlight on) |
| | 65mA (backlight on max) |
| Standby Battery | 12V, 7Ah sealed lead acid. |
| Standby time: | More than 12 hours depending on ancillaries connected to control unit. |
| Max recharge time: | less than 72 hours. |
| Battery charge limit | 270mA |
| 12V Aux supply (inc LS) | 13.7VDC +0.1/-0.4 @ 850mA max. |
| 14V4 supply | 14.4V +0.1/-0.2 @ 230mA |
| 12V Keypad bus | 13.7V =0.1/-0.5 @ 400mA max |
| Monitoring includes | Mains fail, battery low voltage, battery failure. |
Electromagnetic Compatibility
| Immunity | Conforms to EN50130-4. |
| Emissions | Conforms to EN61000-6-3. |
Outputs
| O/P 1 - 2 | Voltage free, single pole relay contacts rated 24VDC @ 1A or 120VAC @ 0.5A. |
| O/P 3 - 4 | Open collector transistor, +12VDC when inactive, 0V when active. 500mA max. |
| O/P 5 - 16 | Open collector transistor, +12VDC when inactive, 0V when active. 500mA max. |
| LS (loudspeaker) | Min impedance 16 Ohm, current consumption from 12VAux = 280mA in alarm. |
Fuses
The control unit has a T250mA mains fuse.
Electrical Safety
Conforms to EN60950-1.
Compliance Statements
This product is suitable for use in systems designed to comply with PD 6662: 2004 at grade 2 and environmental class II.
This product complies with the requirements of EN50131-3 at grade 2 and environmental class II.
This product complies with the requirements of EN50131-6:2008 at grade 2 and environmental class II.
When fitted with an i-sd02 this equipment is compliant with EN 50136-1. It allows the alarm transmission system to meet the performance requirements of EN 50131-1:2006 ATS 2 provided that:
a) It is installed in accordance with the installation instructions.
b) The connected PSTN is functioning normally.
