Scantronic i-on30 - i-on30EX Hybrid 30 zone Control Panel Endstation

NOTE: This panel is supplied as end station only with 10 hard wired zones, keypads and zone expanders sold separately

Description

The i-on30EX is a control unit for a hybrid wired/wirefree alarm system intended for commercial or large domestic use.

The control unit comprises a steel case containing the control unit pcb (printed circuit board), power supply and space for a 7Ah backup battery.

The control unit pcb provides terminals for a single bus. The bus allows you to connect up to 10 peripheral devices using standard four wire alarm cable. The peripheral devices can be any mixture of keypads, zone expanders (for wireless or wired detectors) or remote power supplies. (Note that no more than two expanders can have zones connected to them.)

The control unit pcb also provides a range of connectors for outputs, communicators, and up to 10 FSL (Fully Supervised Loop) or five CC (Closed Circuit) zones.

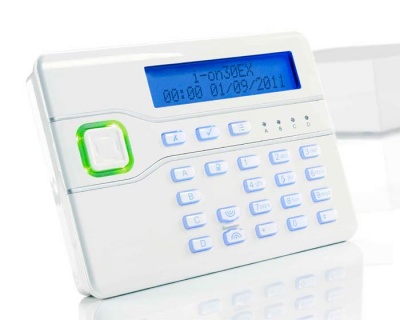

The i-on30EX uses i-kp01 keypads with software revision 2.0 and above. The keypads allow end users to set and unset the system, and the installer to configure the control unit. The keypads also contain integral proximity tag readers, allowing end users to control the system without having to remember access codes.

A range of wireless peripherals is available for operation with the wireless expanders. The range includes a door contact/universal transmitter, a passive infra red detector, smoke detector, external siren, 4 button remote control, and remote radio keypad.

This control unit is designed and approved to be used as part of a Security Grade 2 system.

Communications

The i-on30EXD version of the control unit contains a built-in ATS2 communicator, allowing it to comply with EN50131 at Security Grade 2.

The i-on30EX also provides sockets for an add-on communication module. The available modules are:

i-dig02. A PSTN digital communicator

i-sd-02. PSTN speech dialler and digital communicator

i-gsm02. GSM speech, SMS and digital communicator

8750. Chiron IP communicator

8844. Chiron GPRS communicator

Note: Fitting a plug on module disables the internal communicator

The control unit also provides outputs that can be used to fit a "plug by" communicator.

Level Setting or Partitioned System

The i-on30EX offers two basic ways of behaving as an alarm system:

In Part Setting system the i-on30EX can set in one of four ways: either Full set or three varieties of Part Set.

In a Partitioned system the i-on30EX provides the equivalent of 4, smaller, independent alarm systems. Each system is a "Partition" of the i-on30EX. You can allocate any zone to each Partition. Each zone can also belong to more than one Partition. Each Partition can have a Full Set level and one Part Set level. During installation the installer can allocate keypads, sounders or outputs to any of the partitions.

Installer Programming Interface

As an installer you can program the control unit through any compatible keypad connected to the bus cable. The Installer Menu allows you to specify all the operating parameters for an individual installation.

If you wish, you can also connect a PC or laptop to the USB port on the control unit pcb and use Cooper Security's Downloader software to program the control unit.

Specifications

General

Product name

i-on30EX.

Product Description

30 zone hybrid endstation with remote keypads.

Manufacturer

Cooper Security Ltd.

Environmental

Class II.

Operating temperature

Tested -10 to +55°C.

Humidity

0 to 93% RH, non-condensing.

Case material

Steel.

Dimensions:

Control unit

240 x 250 x 87, mm HxWxD.

Keypad

115 x 156 x 30, mm HxWxD

Weight:

Control unit

2.72 kg (without stand-by batteries).

Keypad

0.27 kg

Capacities

Zones

30 max (with expanders)

Outputs

12 plug-by communicator outputs on control unit, plus

30 max for the rest of the system, comprising:

1 wired on control unit (transistor)

4 transistor based on each wired expander

8 radio outputs from each EXP-R10 or EXP-R30

2 radio outputs on each 762

Expanders and Wired Keypads

10 max devices (see note 1)

Radio Keypads

4 max (two per radio expander)

External Radio Sirens

4 max (two per radio expander)

WAMs

1 max (repeater mode only)

Loudspeakers

1 on control unit, 1 per expander

Plug on communication modules

One

Other ports

1 x USB

Partitions

4 (see note 2)

Log capacity

Up to 350 events: 250 mandatory events, 100 non-mandatory. Stored in EEPROM memory, available for at least 10 years without power.

Internal Clock

±10 minutes over one year (depending on the accuracy of the mains supply frequency).

User Codes

50 (plus installer code)

Remote controls

50 (one per user)

Panic Alarms

50 (one per user)

Proximity tags

50 (one per user)

Notes:
1. Wired keypads, wired zone expanders, and radio zone expanders are all bus devices. You can connect any combination of these devices to the bus up to a maximum number of 10.
2. The system can be used as EITHER a partitioned system OR a part setting system. When used as a part setting system there are four setting levels available: Full Set and Part Sets B, C and D.

Security

Security Grade

Grade 2

Radio detector differs

16,777,214 (2^24 - 2).

Radio Supervision

Programmable.

Number of access codes

50 plus one installer

Access code differs

10,000 differs with 4 digit codes.

All digits may be any number 0 to 9.

Code blocking

Blocked for 90s after 10 incorrect codes in series.

Proximity tag differs

4,294,967,296 (2^32)

Power Supply

This product complies with the requirements of EN50131-6 Type A power supply at Grade 2 and environmental class II.

Power supply type

A

Mains power supply requirements

230VAC +10%/-15%, 200mA max, 50Hz.

Total power supply capacity:

1.0A

(of which 200mA is used for battery recharge and 800mA is available for powering the system).

12V Aux supply*:

550mA max

12V Bell supply*

550mA max

Comms power supply*:

400mA max

12V Expander Bus*:

400mA max

LS connectors

280mA in alarm.

*Note: The ratings given here represent the maximum current that can be drawn before triggering over-current protection.

EN50131-6 ratings

The table below shows the current consumption of the control unit and each device that can be fitted to it.

CIE power requirement:

100mA min.

120mA max

Keypad power requirement:

30mA (backlight off)

45mA/65mA (backlight norm/bright)

60mA in alarm

Wired Expander requirement

20mA max quiescent.

300mA in alarm if sounder connected.

Radio Expander requirement

40mA max quiescent

320mA in alarm if sounder connected.

Battery charging requirement:

200mA (recharge within 72 hrs)

Plug-on Communicator power requirement (i-sd02 or i-dig02):

20mA quiescent
50mA max

Plug-by Communicator pins require:

5mA each when active.

10 FSL zones

20mA

5 CCL zones

30mA

12V Bus output voltage range :

10±0.5V to 13.8V

12V Aux output voltage range:

10±0.5V to 13.8V

12V Bell output voltage range

10±0.5V to 13.8V

Max p-to-p ripple voltage:

0.5V

Standby Battery:

12V, 7Ah sealed lead acid (not supplied).

"Low battery" fault at:

< 12V

Aux power output fault at:

< 9V

Deep discharge protection at:

10±0.5V

Serviceable components:

Mains fuse: 250mA (T)

Electromagnetic Compatibility

Immunity

Conforms to EN50130-4.

Emissions

Conforms to EN61000-6-3.

Outputs

O/P 1,
Bell,
Strobe

Open collector transistor, +12VDC when inactive, 0V when active. 500mA max.

Plug-by O/P 1-12

Open collector transistor +12VDC when inactive, 0V when active, 50mA max.

LS   (loudspeaker)

Min impedance 16 Ohm per output, current consumption = 280mA in alarm.

Sounder Volume Levels (at 1m)

i-kp01 (at max volume)

70dB

Expander piezo sounder

70dB

Panel/Expander 16 Ohm loudspeaker

93dB

Fuses

The control unit has a replaceable T250mA mains fuse.

Electrical Safety

Conforms to EN60950-1.

Other

If you wish to connect the i-on30EX control unit to a PC using the USB port then make sure that the cables have the following specifications:

USB

Mini-B plug for control unit end, USB-A for PC end. Max length 3m.

Radio Expander and Keypads

Radio

Operating frequency 868.6625MHz Narrowband.

EN 300 220-3.

EN 300 330-2

Transmitter range

The range of the transmitters compatible with this control unit depends on the environment in which they are installed. As a guideline, most transmitters will work up 200m range in free space conditions.

Compliance Statements

The i-on30EX is compliant with EN50130-5 environmental class II.

The built in communicator is compliant with EN50136-1 as an ATS2 communicator.

At Grade 2 the built in communicator provides a compliant communicator for the i-on30EX provided that:

a) It is connected in accordance with the installation instructions.

b) The connected PSTN is functioning normally.

When using its built in communicator this product provides options A, B and C at Grade 2 as noted in Table 10 of EN50131-1:2006+A1:2009.

If the installer selects a non-compliant configuration then they must remove or adjust compliance labelling.
