Scantronic 95ENKP 264 Zone Grade 3 Control Panel + 9953EN Keypad

Zoom

Our Price:	£255.40
List Price:	~~£394.99~~
Saving Of:	£139.59 (35%)

(Exc. 20% VAT)(£306.48 Inc. VAT)

Catalogue No: 95ENKP
Brand: Scantronic

Availability:

Delivery Information

	Scantronic 9953EN Additional Keypad & Prox + £102.17
	Scantronic 9951EN Additional Keypad + £87.57
	Scantronic MRNODE 8 Zone Class 6 Wireless Expander + £83.93

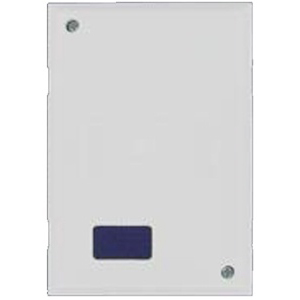

	Scantronic MSNODE 8 Zone Wired Expander + £43.79

Scantronic

Download Product Sheet

Download Data Sheet

Download User Manual

Scantronic 95EN Professional Grade 3 Intruder Alarm Control Panel & 9943EN Keypad Pack

Scantronic has released its 65EN - 85EN & 95EN range of multi-zone, expandable, Grade 2/3 alarm control panels.

Supplied as the 65ENKP, 85EN or 95EN and comes complete with the 09950En keypad with built-in proximity reader. The panels are fully compliant with EN50131 and PD6662: 2004 Grade 2, and DD243: 2004.

Features eight programmable zones expandable to 40 - 64 or 256 zones via keypads, MSNODEs, MRNODES (868MHz narrowband radio), MSPSU (smart PSU – grade 2 or 3).

The range have a 1000-event log, 50 user codes, four partitions, and four part sets, as well as up to 16 remote keypads, and up to 48 prox tags.

There are also built-in communications using Fast Format, Contact ID, SIA 1, 2 and 3, and remote servicing and diagnostics to reduce site visits. USB is used for local PC connections, and the panel is supplied with prox keypad as standard for ease of operation.

The MSPSU expands the system by eight zones and one output, and connects up to four keypads and two loudspeakers. It uses a 1.5Amp power supply and reports PSU voltage and load current back to the main panel and downloader.

The MRNODE features eight radio zones using standard Scantronic 7xx peripherals, as well as dual diversity aerials for superior coverage.

Description

The innovative and reassuringly straightforward Scantronic 95En has the capacity to secure your entire premises however large - from commercial and industrial buildings to shops, stores and large residential properties.

The systems flexibility allows it to be precisely tailored to the way you run your business - however varied your needs. The host of peripherals enables commercial, industrial, retail and public buildings, such as schools or local government offices, to apply specific settings to suit their security needs. This means that you can secure the entire premises, or opt to protect individual buildings, rooms or zones - all in a single, user friendly package that is future-proofed to grow as and when you do.

The 95En's flexibility and dependapility is ideal for larger homes. Specific rooms, floors, annexes, garages and outbuildings can be secured individually or all together, for a perfect fit with how you live your life. A home office can be seperately protected, bedrooms can have their own keypad controlling the rest of the house, or staff quarters can be made safe independently

Key Features

8-264 zones
Upto 100 users
Fully compliant with PD6662:2004 Grade 3
Upto 128 remote keypads (9950EN)
5 programmable outputs plus 16 comms, bell and strobe
Installed as one flexible and expandable system
Adapts to variable security arrangements
Remote servicing and maintenance
Multi-use to protect additional and temporary buildings and spaces
Easy scroll and select menus
Unobtrusive good looks
Minimal disruption during installation
Expands to secure new extensions or additional structures
Battery back up in case of mains failure

Specifications

General
Product name	95
Security Grade	PD6662: 2004, EN50131-1:2006, TS50131-3:2003, EN50131-6:1997, Grade 1, 2 or 3. DD243:2004.
Sales number	95EN
Product Description	264 zone Grade 3 panel with comms

Capacities
Max zones	264
Zones - on board	8
Zones - on expander(s)	256
Standard wired outputs - on board	5
Communicator outputs:	16
Outputs on expander module(s)	144max
Setting Levels:	Full set for each partition
Partitions:	8
Log capacity (events):	2000
No. Keypads	128max
Internal Clock	±10 minutes over one year (depending on the accuracy of the mains supply frequency).
Downloader	Yes
Remote Servicing	Yes

Security
Access code	4 or 6 digits
Number of user codes	251
Code blocking	Programmable
Proximity tag differs	4,294,967,296
Back tamper (in addition to lid tamper)	Separate terminals

Physical
End Station
End Station dimensions:	385(W), 312(H), 95(D) mm
End Station weight (w/o battery):	4.9 Kg
Case material	1.2mm mild steel

Keypad
Keypad name	9951/9953
Keypad sales number	9951EN, 9953EN

Environmental
Environmental Grade	EN50130-5:1998, Class II
Operating temperature	-10 to 40°C
Humidity	0 to 75% RH, non-condensing.

Radio
Expander/Built-in:	Expander (MRNode)

PSTN Communications
Built in Communicator	Yes
Plug on communicator	No
Plug-by communicator	Yes
Protocols:	Fast Format, SIA, SIA II, SIA III, Extended SIA III, Contact ID
Speech Dialler	No
ATS rating	2
Line sharing	Yes
REN	0.2

Power Supply
EN50131-6 Type	A
Mains power supply	145mA @ 230Vac±10%, 50Hz
End station psu	13.65VDC, 1.5A.
End station consumption
Communicator consumption
Standby Battery	12VDC, lead-acid.
Low battery voltage cutoff:
Max recharge time:	24 hrs max. for 17AH battery
Battery charge limit	750mA
12V Aux supply (inc LS)	Depends on attached peripherals
14V4 supply	None
12V Keypad bus	n/a

Data Connections
RS232	Yes
USB	Yes
Printer	Yes, three pin serial RS232
Ethernet	None
ISDN	None
GSM	None
GPRS	None
Engineer keypad port	Yes

Wired Outputs
Bell trigger	Switched -ve @500mA
Strobe trigger	Switched -ve @500mA
H/0+ (positive holdoff)	Yes
H/0- (negative holdoff)	Yes
O/P 1	1 voltage-free changeover 1A max @ 24Vac or 24Vdc
O/P 2	1 voltage-free changeover 1A max @ 24Vac or 24Vdc
O/P 3	Switched -ve @500mA
O/P 4	Switched -ve @500mA
O/P 5-8	Switched +ve @500mA
LS (loudspeaker)	16 Ohms
Communication outputs	16. Source 5mA in 12V condition, sink 100mA in 0V condition, selectable output sense
ST (Siren test)	None

Wired Inputs
TR	Yes, -ve
Tellback/Remote reset**	Yes, 0V applied
Line Fault input**	Yes, +12V applied
Aux Tmp	Yes

Fuses
Mains	T315mA 250V 20mm
Other	The panel uses fast-acting polyswitch fuses for overcurrent protection:
