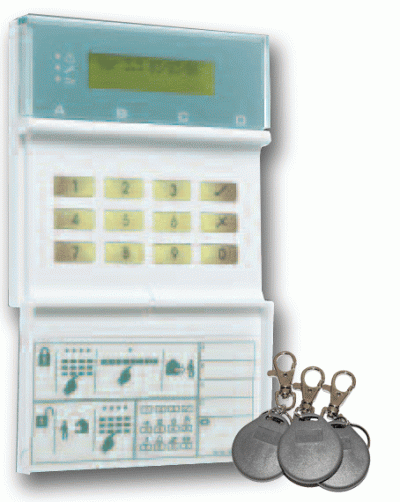

The 9941EN and 9943EN keypads are designed to work with 9853, 9851, 9752, 9751 and 9651 alarm system control units. These keypads are a direct replacement for the 9930, and offers the advantage of smaller size and improved appearance. The 9943 keypad has a proximity tag reader coil fitted inside the case and can work with the same proximity tags as the 934 proximity reader module. The 9941 has no detector coil fitted.
Specifications
| Environmental | Class II |
| Security | Grade 3 |
| Operating Temperature | -10 to 55°C |
| Humidity | 96% RH |
| Dimensions | 115(w) x 115(h) x 24(d) mm |
| Weight | 200g |
| Current consumption | 9941: 20mA max continuous backlight off
60mA max continuous backlight on.
9943: 30mA max continuous backlight off
70mA max continuous backlight on |
| Compliance | EN51031-1. |
