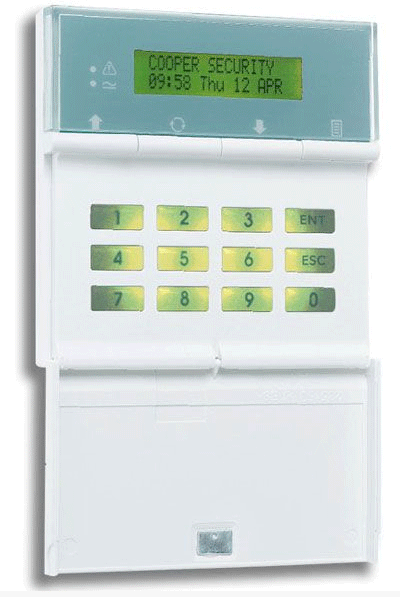

The 9951EN and 9953EN keypads are designed to work with 95, 85 and 65 alarm panels. The 9951EN has no reader coil fitted. The 9953EN has proximity tag reader fitted inside the case and connectors for an external prox tag reader.
Specifications
| Environmental | Class II |
| Security | Grade 3 |
| Operating Temperature | -10 to 55°C |
| Humidity | 96% RH |
| Dimensions | 115(w) x 115(h) x 24(d) mm |
| Weight | 200g |
| Zones | 2, FSL, with anti-masking |
| Display | LCD, 2-lines of 16 characters |
| Output | Switched -ve, 100mA max |
| Current Consumption | 90mA max @12Vdc |
