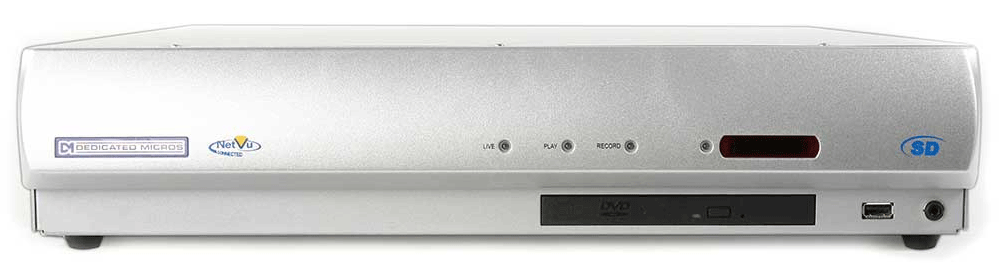

Dedicated Micros 32CH 100PPS DVR 2PPS PER CAM 60 DAY

Zoom

Our Price:  £2,940.66(Exc. 20% VAT)(£3,528.79 Inc. VAT) Catalogue No:  SD32-M60 Brand:  Dedicated Micros Compression:  MPEG-4 @ QCIF, CIF, 2CIF Max Cameras:  32 Availability:      Delivery Information Tweet

Dedicated Micros SD Digital Video Recorders

FLEXIBLE REMOTE VIDEO SURVEILLANCE SOLUTION
The SD Series offers the user a high performance, easy to use plug and play DVR with selectable record duration

providing up to 30 or 60 days recording. Now available in 4, 8, 12, 16 and 32 channel models pre-configured to work
out of the box, the SD Series offers consistent recording duration and smooth motion video on all cameras. The
simplified operation is supported by unified local and remote interfaces, on-screen menus and controls.

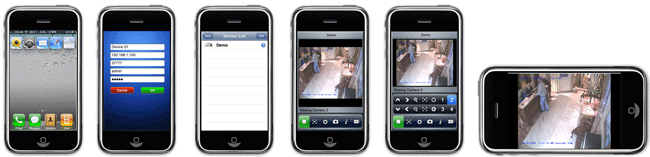

Use your mobile phone to view & control your CCTV system

Native installed Ap Simple user login Select camera   Realtime video    remote control                 Full screen view

Windows, Symbian, Iphone and Blackberry all supported

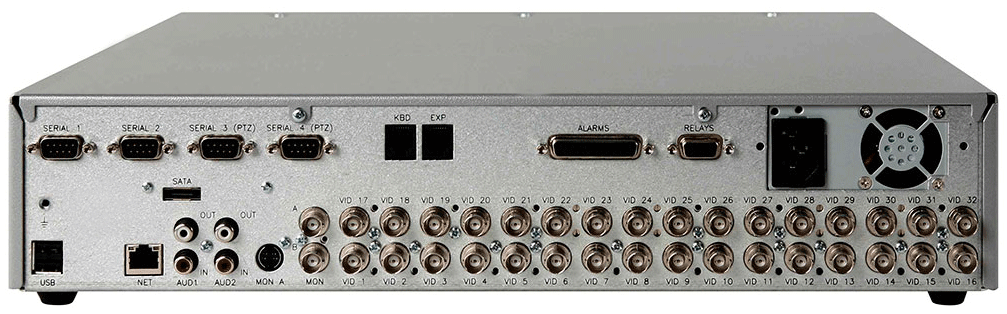

Back Panel

Key Features

• 4, 8, 12, 16 & 32 video channel models
• Easily selected recording configurations for 7, 14, 30 or 60 days of storage
• Up to 120 PPS total
• 3 USB ports and built-in CD writer; up to 1.5TB internal HDD storage
• Managed Storage Unit via a SATA connection to expand storage capacity up to 10TB
• Auto camera detect and auto record on power-up Flexible control options include IR remote, KBC1, KBC2,USB keyboard, USB mouse or remote client; Optional remote keyboard extender kit (KBC/ACC)
• Digital Video Authentication Capability
• Pan Tilt Zoom (PTZ) control using Coaxitron and most popular protocols
• NetVu Connected - ensures interoperability of all Dedicated Micros NetVu connected products and third-party integration products
• MultiMode Recording - dynamically switchable resolution, record rate and compression per camera (MPEG-4 & JPEG)
• TransCoding - maximizes data transmission over available bandwidth for efficient remote viewing
• Simultaneous record, playback, image archiving and live viewing
• Same local and remote user interface for programming, administration and remote viewing
• Color-coded soft key menus provide consistent operation regardless of the control device used
• Continuous, scheduled, motion or alarm based recording for each video input
• Audio – 1 channel bi-directional, recording and network transmission capable
• Text support for point of sale data applications
• AnalyticsCapable on 8, 12 and 16 channel Normal rate units (software upgrade required)
• Compatible with Windows PC, Apple Macintosh, Linux and Sun operating systems

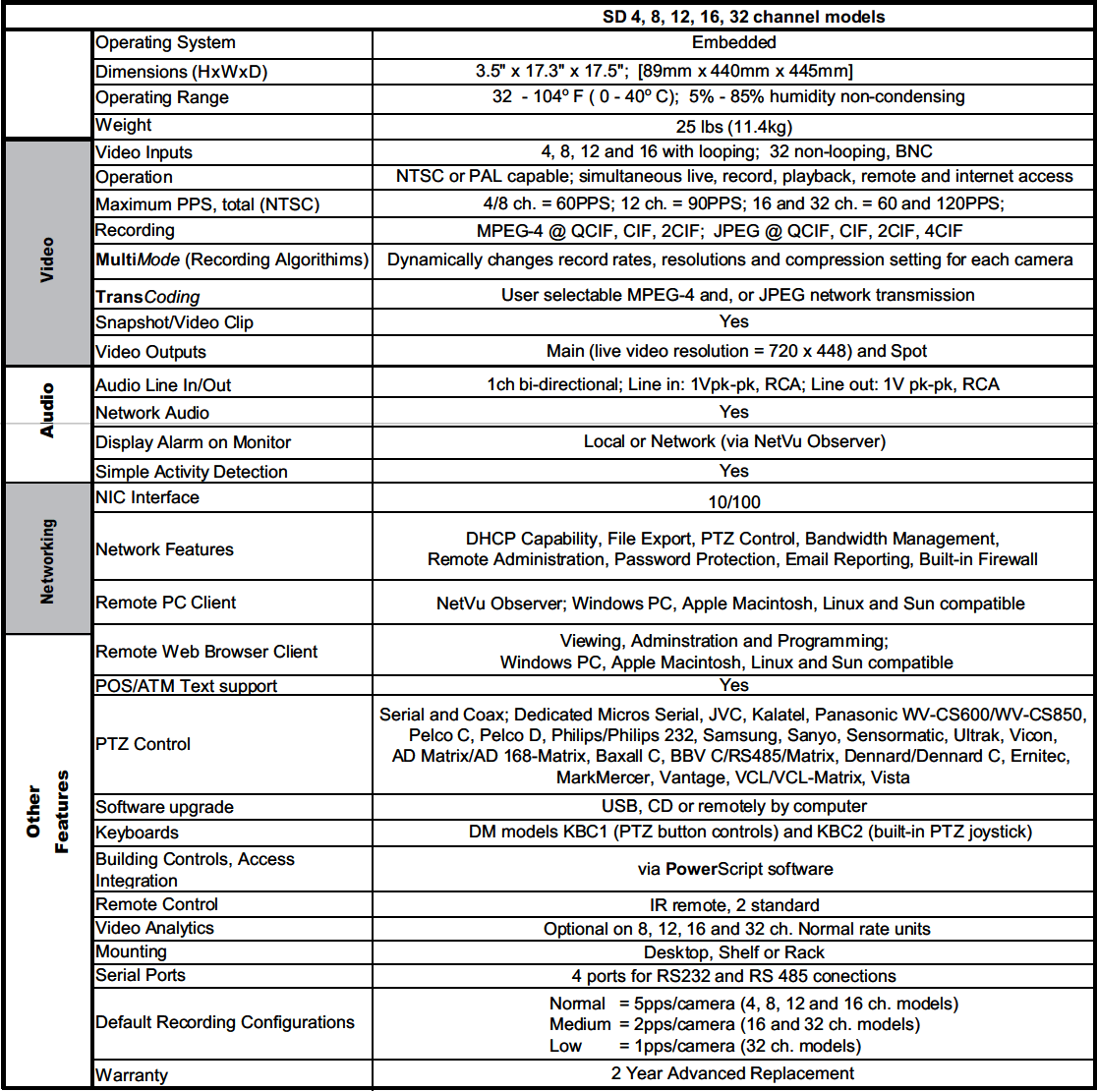

Technical Specification
