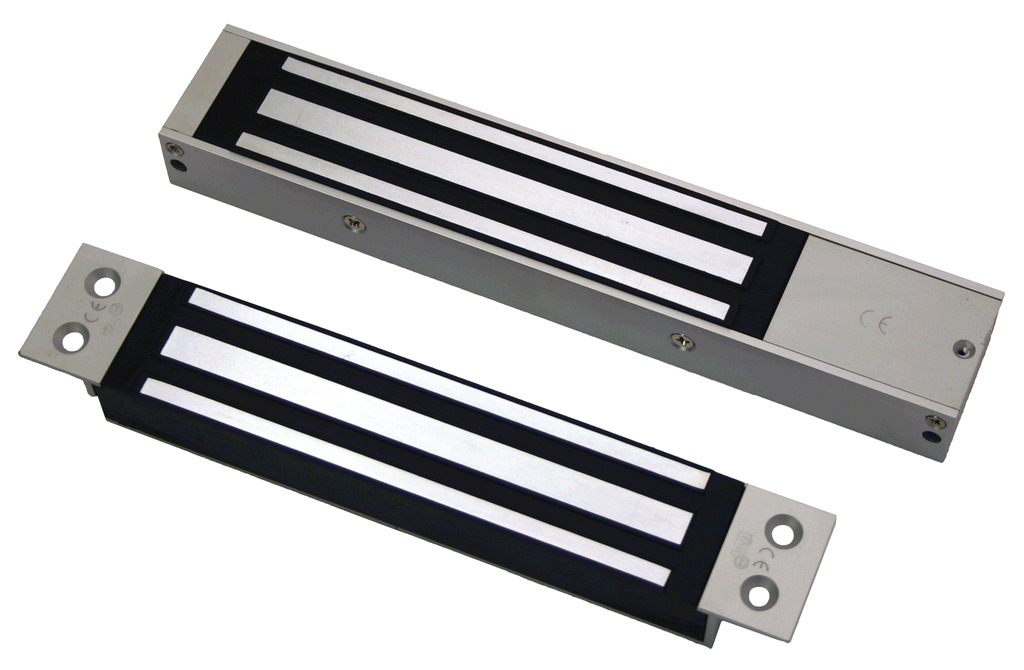

SecureMag range of high performance low cost maglocks- Ideal for Access Control Systems

SecureMag locks are designed to be equivalents in size and specification to the popular M300 S300 and S500 locks at a budget price range

As exact equivalents, they are available as non monitored and monitored (M) versions

All fixing holes are the same, enabling all M300, S300/500 brackets to be used in fixing

The unit is 12/24Vdc selectable, and is usually installed within a transom housing (1 metre or 2 metre) to provide locking of swing doors.

Download Installation Manual

Access control products under the brand names CDVI, Diax, Digikey, Digitag, Digiway, Commax, Digitag LR and SecureMag are supplied by CDVI (UK) Ltd

Online Security Products are an authorised distributor of CDVI (UK) access control products

Table of locks

Code  EquivalentDescription Kg Holding Monitoring Dimensions Voltage Current







M300(M)  ECM5000(M)Mortice Magnet 300Kg Yes 229 x 38 x 27mm 12/24Vdc 630/315mA
S300(M)  ECS5000(M)Surface Magnet 300Kg Yes 253 x 46 x 27mm 12/24Vdc 630/315mA
S500(M)  ECS8000(M)Surface Magnet 500Kg Yes 272 x 65 x 41mm 12/24Vdc

630/315mA
