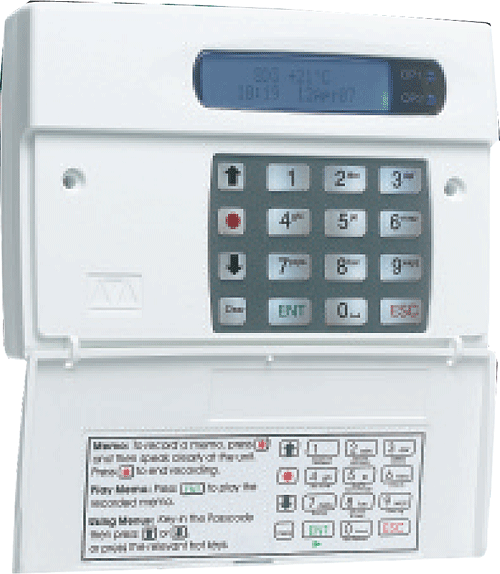

Menvier / SD2 (UK) Speech Dialler

The advanced SD2 warning system

Utilising the latest speech dialler technology from Menvier the SD2 is an advanced warning system which puts configuration, control and response at the fingertips of authorised users.


Features

• 21CN compliant (21st Century Networks - BT’s upgrade to the telephone network)
• Stand alone keypad with 32 character, LCD text display
• Can be used independently to monitor any item that offers a switched negative
or positive trigger
• The SD2 can also be connected to any alarm control panel
• Voltage 10.5V to 14V
• Connects to existing customer line and dials up to 10 fixed telephone or mobile numbers,
sending pre-recorded speech or text messages compatible with any mobile network
• Internal temperature monitoring
• 4 trigger inputs and 4 trigger outputs offer remote notification of alarm event and
notification if the event has been cleared or reset
• Integral loudspeaker and microphone offer two-way speech from the keypad
• Control of 2 output relays used for switching on and off internal devices like
lights or heating system
• Blue LCD display screen

Typical Applications

• Boilers • Freezers • Vending machines • Air conditioning units • Fire alarms, intruder alarm panels

The SD2 is the ideal solution for monitoring temperature control, machinery, medical cabinets, vending machine stock levels, burglar and fire alarms, to name but a few, as well as letting you listen in and talk back to the location.

If you have premises that warrant protection, imagine how reassuring it would be if those premises could communicate with you should the need arise. It could be about an intruder or security, but just as valuably it could be any electrical trigger such as temperature fluctuation, water level monitoring, or a medical event.

Real Flexibility

The SD2 control panel not only gives your premises the power of speech, it gives you the ability to talk back – the communication is two way and can be undertaken remotely.

You can dial into the SD2 and listen in to activity at the premises. You can talk to the site by switching the internal
loudspeaker to the telephone line using touchtone commands. You can even use it as a memo board to record
or retrieve messages and remotely activate or de-activate parts of the system.

The SD2 is the ideal solution for monitoring temperature control, machinery, medical cabinets, vending machine stock levels, burglar and fire alarms, to name but a few, as well as letting you listen in and talk back to the location.

If you have premises that warrant protection, imagine how reassuring it would be if those premises could communicate with you should the need arise. It could be about an intruder or security, but just as valuably it could be any electrical trigger such as temperature fluctuation, water level monitoring, or a medical event.

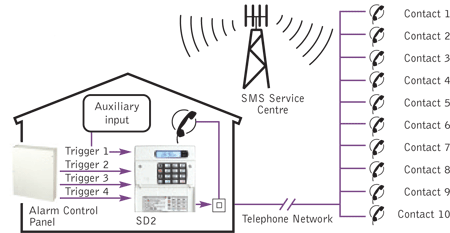

Any combination of up to ten landline or mobile numbers can be stored to be contacted by voice or SMS text message should an event trigger the warning system.

For total flexibility the user can define the triggers, the message that’s sent and the order in which the numbers are dialled.

Total control

From domestic premises to commercial, institutional or agricultural applications, this powerful performance gives
the user total control and peace of mind – it’s security in a box which could actually replace security personnel on the
ground where appropriate.

An event log also records the time and date so that there is a secure audit trail of information.

It’s just one more way in which the SD2 from Menvier keeps you in touch with your premises.

Details

  • 32 character blue LCD display with integral microphone and loudspeaker.
  • DTMF dialling method.
  • All information is permanently stored in an NVM (Non Volatile Memory).
  • 128 event log with time and date.
  • Up to 32 seconds recording time for voice messages.
  • One common message and up to eight user-defined voice or SMS text messages can be stored. Four of the eight messages can be assigned to triggers being activated, the other four can be assigned to triggers being restored. Each of the  eight messages can be re-recorded.
  • Up to 10 contacts can be stored. They can be assigned 32 character text string, which includes name, telephone number and message type.
  • Programmed information is password protected.
  • The dialler can be accessed remotely by dialling into the unit with a touch-tone telephone. Once connected, you can turn on and off the two outputs, activate the listen-in or talkback mode, listen to the message, or record a new message.
  • 'Listen-In Mode' switches the internal microphone to the telephone line, so that you can hear activity at the premises.
  • 'Talkback Mode' switches the internal loudspeaker to the telephone line so you can talk to the premises.
  • A memo feature can be accessed locally at the unit, or remotely using a touch-tone telephone. New messages will be indicated on the display with an audible tone or flashing display. It can be programmed to record automatically when a trigger input is activated.
  • The unit incorporates a temperature sensor and can display the ambient temperature. High and low alarms may be programmed.
  • Dials any combination of 10 telephone numbers.
  • CTR21 Pan European Approved. Manufactured to comply with R&TTE Directive.

Specifications

Physical:
Dimensions (w*h*d) 150 * 104 * 30mm
Weight (packed) 282g
Environment -10°C - 40°C

Electrical:
Input voltage 11.5 - 14V DC
Dialler current 35mA (standby) 70mA (active)
Trigger inputs
A, B, C, D +ve or -ve applied, max 24V
Phrase length
(A, B, C, D, 0) Variable
Message length Max 40 seconds
REN value 0
Dialling method LD or DTMF (auto s
