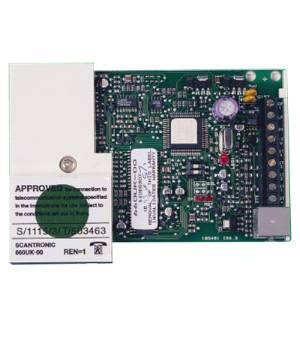

The 660 is a wire-in auto dialling speech/digital communicator unit, designed to be discreetly fitted in a Scantronic, or any other manufacturer's alarm control panel.
It offers a wide variety of choices should you wish to have your premises monitored, providing enhanced security to your alarm system, giving you total peace of mind.
4 Channel wire in digital/speech communicator.
4 operational channels connected to the host control panel via standard screw terminals tagged ST1 to ST4.
4 telephone number capability.
4x3 second speech messages plus, 1x8 second master message (user re-recordable).
Uses normal DTMF telephone to program.
Local telephone connection.
Remote control programming option (not for speech messages).
1 programmable transitorised output can be comms failure, comms successful, or remote control.
Redirect input message patterns programmable.
Trigger inputs are 5V logic level, withstands up to 25V.
Manufactured to R & TTE directive.
Unit even fits into compact alarm systems (i.e. 9448+ and 500r+).
Specifications
| Electrical: | |
| Quiescent current | 10mA |
| Low battery detection | 10.8V |
| Physical: | |
| Dimensions (w*h*d) | 120*85*26mm |
| Weight | 110g |
