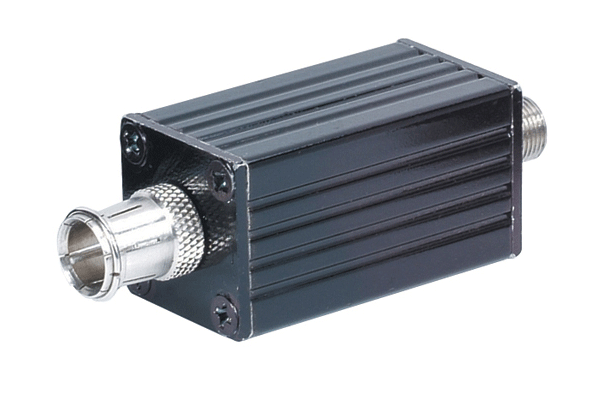

GSP02 Coaxial Surge Protection Device
Product Overview
Coaxial Surge Protection Device, F-Connector Male to F-Connector Female.
Key Features
- Protects equipment from high voltage surges, e.g. nearby lightning strikes.
- Two stage protection: under100ns – 90V, over 100ns-12V.
- Wide range of applications: CCTV, Television Antenna, Multiplexers & Quads, VCR, DVR etc.
These devices provide protection from high voltage surges such as nearby lightning strikes. The devices shunt high voltage transients to ground and prevent them from passing onto sensitive electronic equipment such as VCR’s, DVR’s, Cameras and Multiplexers.
Technical Specification
Model Number
| GSP02
|
| Dimension (Wx H x D) | 78 x 25 x 25mm
|
