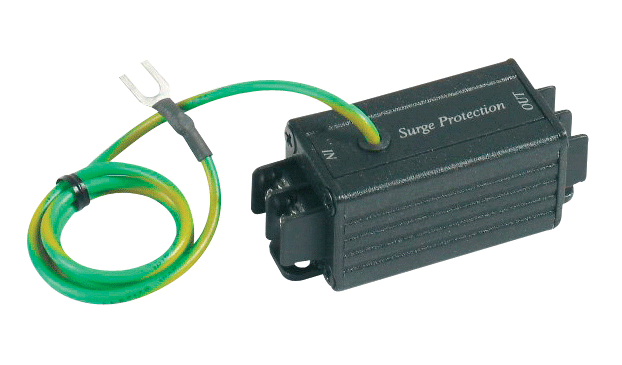

Genie CCTV GSP04 Surge Protector Terminal Block Connector One Pair

Zoom

Our Price:	£10.54
List Price:	~~£21.42~~
Saving Of:	£10.88 (51%)

(VAT Free)

Catalogue No: GSP04
Brand: Genie CCTV

Availability:

Delivery Information

GSP04 Surge Protection Device

Product Overview

Surge Protection Device, Terminal Block Connector to Terminal Block Connector - One Pair.

Key Features

Protects equipment from high voltage surges, e.g. nearby lightning strikes.
Two stage protection: under100ns – 90V, over 100ns-12V.
Wide range of applications: CCTV, Television Antenna, Multiplexers & Quads, VCR, DVR etc.

These devices provide protection from high voltage surges such as nearby lightning strikes. The devices shunt high voltage transients to ground and prevent them from passing onto sensitive electronic equipment such as VCR’s, DVR’s, Cameras and Multiplexers

Technical Specification

Model Number	GSP04
Protection Attack Time	100 ns
Maximum Surge Current	5000A
Life	300 Surges of 100Amps
Normal Resistance Across Coax	10,000 M Ohm
Surge Resistance	Approx. 0 Ohm
Power Passing Capability	DC 90V AC 90Vp-p 65V rms @ 10 Amps
Insertion Loss	Less than 0.2 dB
Return Loss (75 Ω)	16dB
Connectors	Terminal
Dimensions (W x H x D )	25 x 25 x 65mm
Weight	65g
