Catalogue No: DVC-01MEBrand: BPT
Click for delivery info

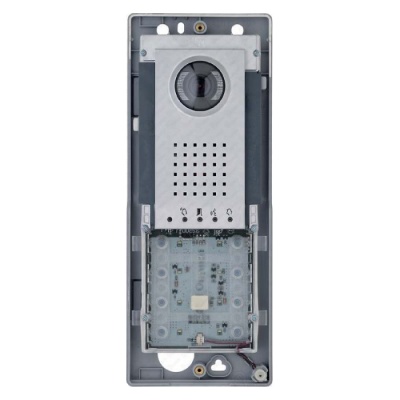

Colour video entry panel; thermoplastic body finished in Metal-colour satin-finish chrome Circuit board for X1 system, microphone and loudspeaker. NTSC/PAL video camera, resolution 680x512 with built-in microprocessor for digital signal processing, horizontal angle of aperture 82° with digitally-controlled zoom. Caller illumination using 4 high-efficiency LEDs.
Protection rating IP 54Dimensions (WxHxD): 99x254x25 mmDécor panel not included
Adjustment of microphone/loudspeaker volume and door lock release time. Simple connection using pre-wired flat cables (supplied as standard) and mini USB connector for programming with software tool. Local command for door lock, inputs for door lock release buttons, door status signalling devices, output connector for activation of external cameras. Blue LEDs (8) for backlighting of keys with name label. LEDs for visual control of the status of the system: red "call connected" LED, green "door open" LED, yellow "call in progress" LED, blue "system busy" LED.
