Ganz C-GLI Hi performance Video Ground loop isolator

Ganz C-GLI Hi performance Video Ground loop isolator
Our Price:  £34.33
List Price:  £64.35
Saving Of:  £30.02 (47%)
(Exc. 20% VAT)(£41.20 Inc. VAT)

Catalogue No:  C-GLI
Brand:  Ganz

Current Item:


Click for delivery info


Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

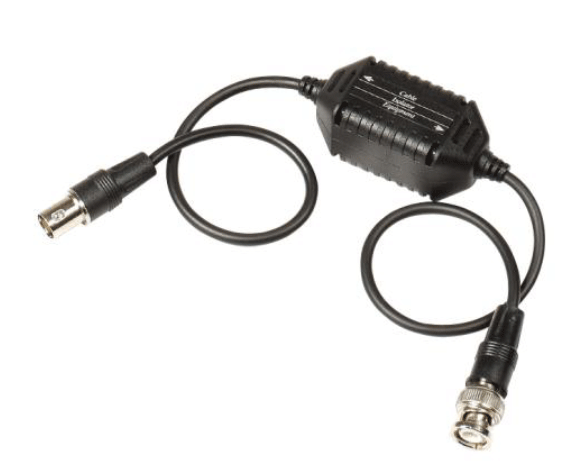

Ganz C-GLI Hi performance Video Ground loop isolator

Video Ground Loop Isolator could reduce "Ground Loop Interference" with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, differences in ground potentials are typically caused by unbalanced power line loads.

  • BNC male to BNC female with mini cable 15cm on both sides.
  • Passive type, no power need.
  • Hi Performance to eliminate ground loop problem.
  • Low video loss , Bandwidth: 20hz -11Mhz ,+0/-3Db
  • Prevents video-signal distortion caused by video ground loops.
  • Eliminates picture tearing, cross talk and rolling.
  • Prevents power cables laid by others interfering with the CCTV system
Insertion Loss
20Hz -11MHz, +0/-3dB
Input Resistance
75 ohm
Output Resistance
75 ohm
Ground loop rejection
>90dB @>50Hz
Isolation Voltage
600VDC (Min)
Insulation Resistance
100m Ohm
Transient Voltage Suppressors
12 Vrms
Dimensions (mm)
28x26.5x73 with 15cmx2 cable
ABS Black
