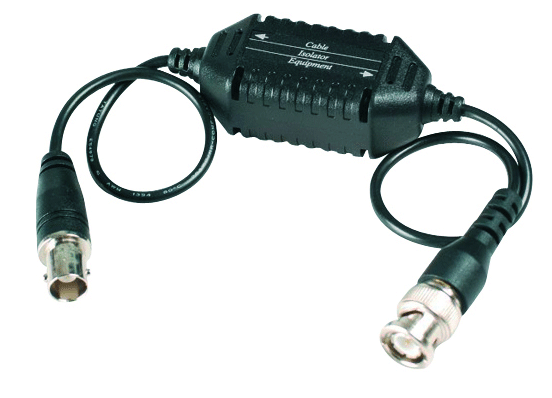

Genie CCTV GCB01H High Performance Video Ground Loop Isolator

Genie CCTV GCB01H High Performance Video Ground Loop Isolator
Zoom  Zoom
Our Price:  £25.61
List Price:  £52.08
Saving Of:  £26.47 (51%)
(Exc. 20% VAT)(£30.73 Inc. VAT)

Catalogue No:  GCB01H
Brand:  Genie CCTV

Availability:  <a href='/delivery.html' target='_blank'><font color='#ff0000'>Delivery Information</font></a> <br>  Delivery Information

Genie CCTV


GCB01H Video Transformer

Product Overview

High Performance Video Ground Loop Isolator, Low Video Loss, BNC Male to BNC Female with 150mm Leads, Passive - No Power Required, Prevents Video Signal Distortion, Tearing, Crosstalk, Picture Rolling.

Key Features

The GCB01H is a Low Loss Video Ground Loop Isolator that reduces Ground Loop Interference on composite video signals. It is used in situations where video signals are being transmitted between points with different ground potentials. Unbalanced power line loads typically cause differences in ground potentials.


  • Low Video Loss
  • BNC Male to BNC Female with 150mm Mini Coax on Both Sides
  • Passive, No Power Required
  • Prevents Video Signal Distortion Caused by Video Ground Loops
  • Built-in TVS (Transient Voltage Suppressor) For Surge Protection

Technical Specification

 Model Number GCB01H
 Insertion Loss 0.5dB
 Frequency Response 0~ -3dB at 20Hz ~ 6MHz
 Input Resistance 75 Ohm
 Output Resistance 75 Ohm
 Isolation Voltage 600VDC (Min)
 Insulation Resistance 100M Ohm
 Transient Voltage Suppressor 12V rms
 Material ABS Black
