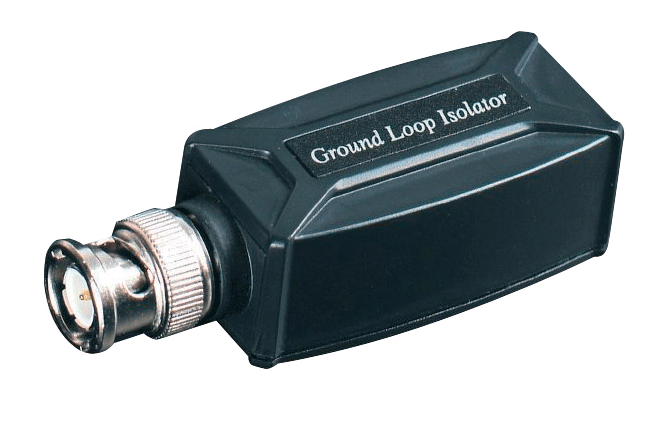

Genie CCTV GCT01 Ground Loop Isolator BNC Male-Terminal Block

Genie CCTV GCT01 Ground Loop Isolator BNC Male-Terminal Block
Zoom  Zoom
Our Price:  £17.34
List Price:  £35.25
Saving Of:  £17.91 (51%)
(Exc. 20% VAT)(£20.81 Inc. VAT)

Catalogue No:  GCT01
Brand:  Genie CCTV

Availability:  <a href='/delivery.html' target='_blank'><font color='#ff0000'>Delivery Information</font></a> <br>  Delivery Information

Genie CCTV


GCT01 Video Transformer

Product Overview

Video Ground Loop Isolator, BNC Male to Terminal Block, Passive - No Power Required, Prevents Video Signal Distortion, Tearing, Crosstalk, Picture Rolling.

Key Features

The GCT01 Video Ground Loop Isolator is a passive device that can reduce Ground Loop Interference with composite video signals. It is used in situations where video signals are being transmitted between points with different ground potentials. Unbalanced power line loads typically cause differences in ground potentials.

  • BNC Male to Screw Terminal, Video + and -
  • Passive, No Power Required
  • Prevents Video Signal Distortion Caused by Video Ground Loops
  • Built-in TVS (Transient Voltage Suppressor) for Surge Protection

Technical Specification

Model Number
 GCT01
 Dimension (Wx H x D) 22 x 25 x 22mm
 Insertion Loss 0.5dB
 Frequency Response 0-3dB at 10Mhz
 Input Resistance 75 Ohm
 Output Resistance 75 Ohm
 Isolation Voltage 600VDC (Min)
 Insulation Resistance 100M Ohm
 Transient Voltage Suppressor 12V rms
 Material ABS Black
