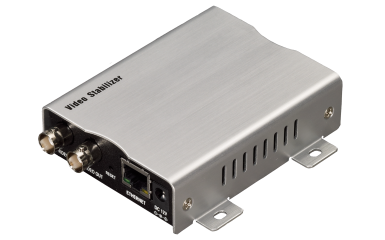

Video Stabilizer

(Exc. 20% VAT)(£536.20 Inc. VAT)

Catalogue No: ZS-STB100
Brand: Ganz

Availability:

Delivery Information

Ganz

Key Features

Single channel, 12 VDC powered
Eliminates camera sway and other unwanted camera movement
Suited for high zoom applications where video stabilization is necessary
Simply plug and play between video source and display
Advanced automatic algorithm, locks onto background features ignoring burnt-in text and moving objects

Model	ZS-STB100
Stabilization Tracking Rate	Approx ±3,000 pixels / sec
Stabilization Range	±192 pixels
Video Delay	< 80ms
Stabilization	X-Y movement at sub-pixel accuracy
Automatic Algorithm	Locks on to background features and ignores moving objects and burnt-in text
Lock-on Time	< 80ms from change of image
Video Input & Output	Composite, 1V, 75 Ù, BNC connector
Video Standards	NTSC
D1 Resolution Digitization	720 x 480
Network 10/100 Base-T	(set-up only)
Simple Installation	In-line between camera and monitor
Power Source/Consumption	12V DC / 220 mA
Operating Temperature	32 °F ~ 122 °F
Operating Humidity	Up to 85% RH (non-condensing)
Dimensions	3.7”(W) x 1.0”(H) x 4.2”(D)
Weight	(Approx) 0.3 lbs
