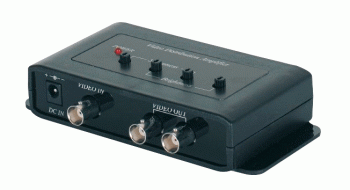

GCD02/A Coaxial Distributor
Product Overview
Coaxial Video Distributor with In-Built Amplifier, 1 x BNC Input to 2 x BNC Outputs, DC12V, Power Supply Included, 10dB Video Gain, Sharpness and Brightness Adjustment.
Key Features
- 10dB Gain
- Red LED – Power On/Power Off
- For Connection to Video Cameras, Multiplexers, DVR’s etc.
- Power Supply (DC 12V) Included
Technical Specification
Model Number
| GCD02/A |
| Video Input Channel | 1 |
| Video Output Channel | 2 |
| Video Input Level | 0.8 ~ 1.2V p-p 75 Ohm |
| Video Output Level | 1V p-p (Standard) 75 Ohm |
| Video Bandwidth | 10Hz - 10MHz |
| Transmission Range | 300 Metres Maximum |
| Power Supply | DC12V |
| Power Consumption | 100mA |
| Dimensions (W x H x D ) | 138 x 28 x 84mm |
| Weight | 130 Grams |
| Material | ABS Black |
