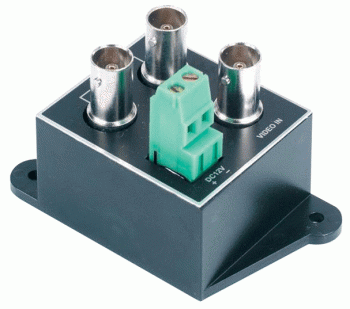

GCD02 Coaxial Distributor
Product Overview
Coaxial Video Distributor, 1 x BNC Input to 2 x BNC Outputs, DC12V PSU included.
Key Features
- Dual Power DC12V and AC24V
- Red LED – Power On/Power Off
- For Connection to Video Cameras, Multiplexers, DVR’s etc.
- Power Supply Included
Technical Specification
Model Number
| GCD02 |
| Video Input Channel | 1 |
| Video Output Channel | 2 |
| Audio Input Channel | Not Available |
| Audio Output Channel | Not Available |
| Video Input Level | 0.8 ~ 1.2V p-p 75 Ohm |
| Video Output Level | 1V p-p (Standard) 75 Ohm |
| Video Bandwidth | 10Hz - 10MHz |
| Transmission Range | 300 Metres Maximum |
| Power Supply | DC12V PSU included |
| Power Consumption | 100mA |
| Dimensions | 72 x 50 x 32mm |
| Weight | 90 Grams |
| Material | ABS Black |
