Genie CCTV GTP405 Video Distributor

Zoom

Our Price:   £22.62 List Price:   £46.00 Saving Of:   £23.38 (51%) (Exc. 20% VAT)(£27.14 Inc. VAT) Catalogue No:  GTP405 Brand:  Genie CCTV Availability:      Delivery Information Tweet

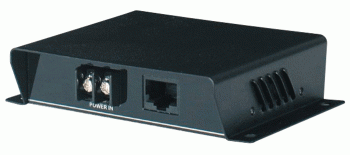

GTP405 Video Distributor

Product Overview

Passive Twisted Pair Distributor, 4 Cameras plus DC Power, 4 x RJ45 (One Video Signal per RJ45) to 1 x RJ45 & DC Power, Includes DC12V, 1A Power Supply Unit, 250mA Output per Channel

Key Features

• Supplies 12V dc Power to 4 x Cameras, Max. 30m @ 250mA
• Accepts 4 x Video Inputs via 4 x UTP Cables
• Distributes 4 x vVdeo Signals (Outputs) via 1 x UTP Cable
• Transmission Range – 300m in Colour, 600m in Monochrome
• Dimension - 110mm(l) x 77mm(h) x 24mm(w)
• For Use with Category 5, 5e & 6 Unshielded Twisted Pair Cable
• Uses Pins 7 & 8 for Each Input Video Signal
• Uses Pins 4 & 5 for Each Power Output
• Power Supply, Regulated 12V dc 1Amp, Supplied

Technical Specification
