Genie CCTV GVGA-EXT VGA Extender Kit

Genie CCTV GVGA-EXT VGA Extender Kit
Zoom  Zoom
Our Price:  £58.81
List Price:  £119.59
Saving Of:  £60.78 (51%)
(Exc. 20% VAT)(£70.57 Inc. VAT)

Catalogue No:  GVGA-EXT
Brand:  Genie CCTV

Availability:  <a href='/delivery.html' target='_blank'><font color='#ff0000'>Delivery Information</font></a> <br>  Delivery Information

Genie CCTV

Genie CCTV GVGA-EXT VGA Extender Kit

Product Overview

VGA Extender Kit, Passive Devices, Includes Transmitter and Reciever, Supports up to 1280 x 1024 Pixels, Up to 100 Metres via 4-Pair Category 5e/6 UTP Cable, Virtual DDC.

Key Features

  • Passive Device – ‘No Power Required’
  • Kit Includes a Transmitter and a Receiver
  • Supports up to 1280 x 1024 Pixels
  • Up to 100 Metres (Max.) via 4-Pair Category 5e/6 UTP Cable
  • Transmitter has aVirtual DDC to Avoid Incorrect Resolution and Frequency Settings

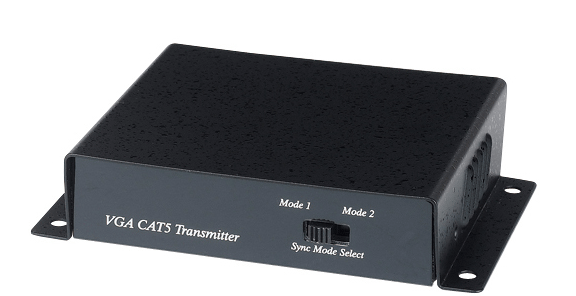

  • Transmitter Equipped with Sync Mode Selection for Signal Stability
  • Receiver has Built-in Sync Filter Level Adjustment for Signal Stability

Technical Specification

Model Number
GVGA-EXT
DevicesTransmitter: DVR, PCs, Laptops, Receiver: VGA Monitors, Projectors
Input Signals
Video: 1 Vp-p Horizontal & Vertical SYNC: TTL Standard. 300 kHz max. Bandwidth
Insertion Loss
Less Than 3dB Per Pair Over The Frequency Range
Video Signal Return Loss
-15dB max From DC to 60Mhz
RJ45 Pin Configuration: EIA 568B Wiring Standard
Transmitter: R Video (Red): Pin 1 (+) / G Video (Green): Pin 4 (+) / B Video (Blue): Pin 7 (+) / Horizontal Sync: Pin 3. Receiver: Pin 2 (-) Balanced Pin 5 (-) Balanced Pin 8 (-) Balanced Vertical Sync: Pin 6
Impedance
Transmitter: Input: RGB 75 Ohm (DB15 HD) Unbalanced Output: RGB 100 Ohm (RJ45 Shielded) Balanced. Receiver: Input: RGB 100 Ohm (RJ45 Shielded) Balanced Output: RGB 75 Ohm (DB15 HD) Unbalanced. Both T & R: Horizontal and Vertical Sync: TTL Standard
Setting Switch
Transmitter: 2 Stage Slide Switch, Receiver: 5 Stage Dip Switch
Transmission Distance
Upto 100m Depending On Image Resolution
Link Cable CAT5 /CAT5e /CAT6 / STP or UTPCable
Operating Conditions
Temperature: 0°C ~ +55°C, Humidity: 30 ~ 95% RH
Dimensions (W x H x D)
110 x 77 x 26 mm
