CDVI 2Easy 2 wire CDV91S VR Zinc Alloy Door station

This modern slimline design door station is available as a single button unit only.

Part of the 2Easy range, the CDV91S is compatible with all 2Easy 2-wire system models and is included in all CDV4791S-DX Kits.

The modern low profi le styling suits all environments and features a 170° camera with audible operation annunciation such as “call is in progress”.

The 2EASY system from CDVI off er convenient and high quality video entry. Connection throughout is 2-wire, non polarised providing simple and effi cient installation and maintenance.

Single call button, system design tips:

Use this video door entry call point with CDVI 2Easy range of products, minimum requirement is - 1 call point, 1 monitor, 1 power supply part No. CDV-PC6

NB: Single button video systems can be ordered as complete kits

Single call button systems only support 1 X CDV47DX wi-fi monitor - for additional monitors please select from list of compatible part numbers below

• CDV-47-B (matching 7" touchscreen hands free monitor non wi-fi curretly only available in black)
• CDV-43 (4.3" hands free monitor, neat design with touch buttons built in only available in white)
• CDV-24 (4" wall mounted monitor with handset on coiled wire ideal for noisy environments only available in white)
• CDV-17HFA (Audio only hands free unit ideal for lesser used areas i.e. attic landing, garden shed etc.

Don't forget, if you order additional monitors you should order a 4 way distributor for systems up to 4 monitors in total - part No. CDV-DBC4A

For wiring diagrams, see below

For larger systems with multiple call buttons, please call us for design support

Overview

• Improved sleek design
• 170º fisheye camera
• Integral Microphone
• Audible annunciation
• Two way talk
• Live viewing

Specification

Zinc alloy panel
Surface wall mount

Camera

Colour CMOS 2.0 mega pixel
1/2.7" fisheye 170º wide angle

Output Specification

Relay circuit 1

Electrical Specification

Power Supply: 24Vdc
Power Consumption: 122mA (working), 14mA (standby)
Lock Power Supply: 12Vdc, 250mA (Internal power - Fail secure only)

Wiring

2-wire
No polarity

Dimensions

Dimensions: 160 x 60 x 31.5mm
Environment: -15°C to 55°C

Wiring is simple

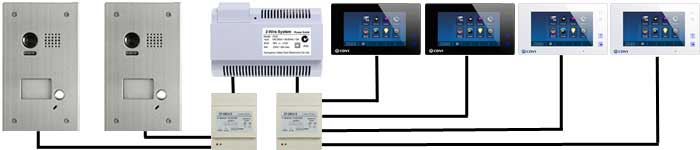

Wiring example

2 Doors to 4 monitors using 2 core cables

Diagram shows 2 X CDV91-SF connected to CDV-DBC4A connected to CDV-PC6 output to CDV-DBC4A with 4 X CDV47 monitors

Other combinations can be used to achieve any configuration required up to 4 entrances maximum, you can combine different monitors and even use audio only for lesser used locations, i.e. in the cellar.
