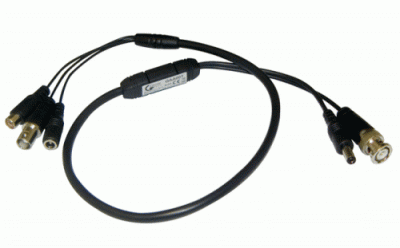

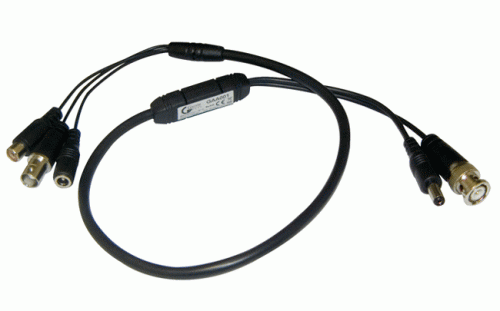

In Line Audio Pick Up microphone

In Line Audio Pick Up microphone
  Zoom

Download Brochure

Our Price:  £9.19
List Price:  £10.80
Saving Of:  £1.61 (15%)
(Exc. 20% VAT)(£11.03 Inc. VAT)
+

Catalogue No:  GAA001
Brand:  Genie CCTV

Current Item:



Click for delivery info

Genie CCTV


Special Offer:  Free delivery is available when you order £208.34 or more of selected products.

In line audio pick up 12VDC C/W microphone

Simply add this in line 12VDC powered microphone in line at any camera location to add audio pick-up in the area around the camera, simple to fit and install, simple to upgrade a camera to audio functionality, powered in line from the 12VDC supply used to power the camera.

NB: Unit requires audio screened cable between camera and recorder/monitor to carry the audio signal, connections to the GAA001 are Phono female (male Phono plug required on the end of the screened cable to connect).

Features

  • One add-on mini audio box for all cameras which need audio function.
  • High sensitive microphone (-65dB) and DC12V power regulator built-in box.

Specification

Model Number
 GAA001
 Audio Output Max 2 V p-p
 Power Supply 12 VDC (+ / - 0.5V)
 Power Consumption 10mA
 Dimensions (W x H x D mm) 40x14.5x8 (Audio Box)
 Weight 100g
 Storage Temperature 30 to +60°C
 Operating Temperature -10 to +45°C
