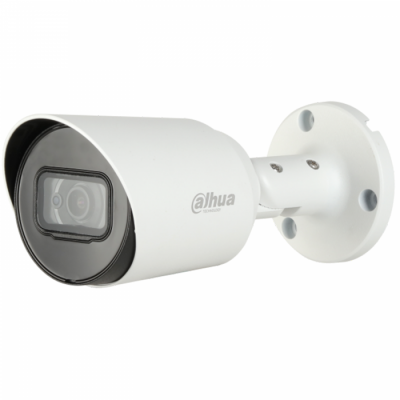

Dahua HAC-HFW1500TP-A-POC-0360B 5MP HDCVI POC IR (30m) Bullet 3.6mm Lens DC12V IP67

Dahua HAC-HFW1500TP-A-POC-0360B 5MP HDCVI POC IR (30m) Bullet  3.6mm Lens  DC12V  IP67
  Zoom
Our Price:  £32.31(Exc. 20% VAT)(£38.77 Inc. VAT)Catalogue No:  HAC-HFW1500TP-A-POC-0360B

Current Item:



Click for delivery info

+

Dahua

Dahua HAC-HFW1500TP-A-POC-0360B 5MP HDCVI POC IR (30m) Bullet 3.6mm Lens DC12V IP67

5MP HDCVI POC IR Bullet Camera

Key Features

  • Max. 20pfs@5MP
  • HD and SD output switchable
  • 3.6mm fixed lens
  • Max. IR length 30m, Smart IR
  • IP67, POC/DC12V

Camera

Image Sensor

1/2.7" CMOS

Effective Pixels

2592(H)×1944(V), 5MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination

0.02Lux/F1.85, 30IRE, 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 30m (98feet)

IR On/Off Control

Auto / Manual

IR LEDs

1

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

3.6mm

Max Aperture

F1.85

Angle of View

H: 77.5°
V: 56.5°

Focus Control

N/A

Close Focus Distance

1400mm

55.1''

DORI Distance

Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.



DORI

Definition

Distance

Detect

25px/m

(8px/ft)

3.6mm: 80m(262ft)

Observe

63px/m

(19px/ft)

3.6mm: 32m(105ft)

Recognize

125px/m

(38px/ft)

3.6mm: 16m(52ft)

Identify

250ppm

(76px/ft)

3.6mm: 8m(26ft)

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video

Resolution

5MP (2592×1944)

Frame Rate

20fps@5MP, 25/30fps@4MP, 25/30fps@1080P

Video Output

1-channel BNC high definition video output / CVBS video output (Can switch)

Day/Night

Auto (ICR) / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface

Audio Interface

N/A

Eelectrical

Power Supply

POC/12V DC ±30%

Power Consumption

Max. 3.6W (12V DC, IR on)

Environmental

Operating Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

* Start up should be done at above -40°C (-40°F)

Storage Conditions

-40°C ~ +60°C (-40°F ~ +140°F) / Less than 95% RH

Ingress Protection & Vandal Resistance

IP67

Construction

Casing

Aluminium

Dimensions

176mm×72.4mm×72.5mm (6.93"×2.85"×2.85")

Net Weight

0.37kg (0.82lb)

Gross Weight

0.48kg (1.06lb)

Catalogue No:  HAC-HFW1500TP-A-POC-0360B
Brand:  Dahua
Warranty:  3 Years
HD Format:  CVI/TVI/AHD/CVBS
Lens supplied:  3.6mm
IR Illumination:  40m
Rating:  IP67
Resolution:  5MP
