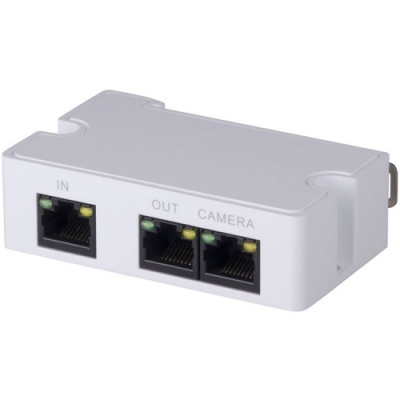

Dahua PFT1300 Dahua PoE Extender

Catalogue No: PFT1300

£19.58

(Exc. 20% VAT)

(£23.50 Inc. VAT)

Delivery info

–

Information

Dahua PFT1300 Dahua PoE Extender

PoE Extender

Key Features

Support passive PoE cascade power supply and Ethernet data exchange
Support IEEE 802.3af/at standard power supply IP Camera
Cooperate with High PoE Midspan (PFT1200), able to cascade level 2 PoE Extender, connect to 3 IPC (total power consumption ≤25W), max transmission distance 300m
1*RJ45 10/100M PoE power supply input; 1*RJ45 10/100M supply power for IP Cam; 1*RJ45 10/100M supply power for the next extender
Installation mode: junction box internal mounting, DIN rail mounting

Specifications

Technical Speciﬁcation

Model

PFT1300

Ethernet Port

1*10/100 Base-T PoE power receiving port

1*10/100 Base-T PoE power supply port, supply power for the next extender

1*10/100 Base-T PoE power supply port, supply power for IPC

Transmission Distance

Cooperate with DH-PFT1200, able to cascade level two extender, connect to 3 IPC (level one extender connects to 1 IPC, the OUT port of level two extender and CAMERA port connect to 1 IPC respectively, total power consumption <=25W), transmission distance is 300m

Power Consumption

<=3W

Application Humidity

10%~90%

Working Temperature

﹣30°C~65°C

Weight

57g

Dimension(W×D×H)

79mm×52mm×23mm

Datasheet

Product Attributes

Catalogue No

PFT1300

Brand

Dahua

Warranty

3 Years
