Dahua DH-IPC-HDBW5541E-ZE 5MP WizSense IR (40M) Eyeball, PoE/12VDC, IP67 IK10

Dahua DH-IPC-HDBW5541E-ZE 5MP WizSense IR (40M) Eyeball, PoE/12VDC, IP67 IK10
Catalogue No: DH-IPC-HDBW5541E-ZE
£179.19
(Exc. 20% VAT)
(£215.03 Inc. VAT)
–
+

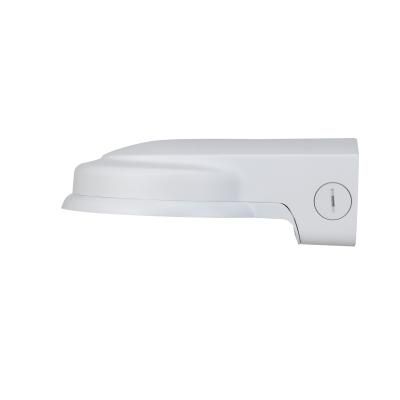

Dahua PFB211W Wall mount bracket
Dahua PFB300C Ceiling Bracket
Dahua PFA152-E Pole Mount Bracket
Dahua
Information

Dahua DH-IPC-HDBW5541EP-ZE 5MP WizSense IR (40M) Eyeball, PoE/12VDC, IP67 IK10

Key Features

  • > 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
  • > Outputs max. 5MP (2592 × 1944)@20 fps , and supports 4MP (2688 × 1520)@25/30 fps
  • > Built-in IR LED, and the max. illumination distance is 40 m.
  • > ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
  • > Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
  • > Three switchable intelligent resources: IVS, face detection, and people counting.
  • > Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card.
  • > 24 VAC/12 VDC/PoE power supply, easy for installation.
  • > ePoE; IP67 and IK10 protection.
  • > SMD 3.0.
Specifications
Camera
Image Sensor 1/2.7" CMOS
Max. Resolution 2592 (H) × 1944 (V)
ROM 128 MB
RAM 1 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 0.005 lux@F1.5 (Color, 30 IRE)
0.0005 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance 40 m (131.23 ft) (IR)
Illuminator On/Off Control Auto
Illuminator Number 3 (IR LED)
Pan/Tilt/Rotation Range Pan: 0°–355°
Tilt: 0°–65°
Rotation: 0°–355°
Lens
Lens Type Motorized vari-focal
Lens Mount φ14
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.5
Field of View Horizontal: 100°–28°
Vertical: 72°–21°
Diagonal: 133°–35°
Iris Control Auto
Close Focus Distance 0.8 m (2.62 ft)
DORI Distance Lens Detect Observe Recognize Identify
W 64 m (209.97 ft) 25.6 m (83.99 ft) 12.8 m (41.99 ft) 6.4 m
(21.00 ft)
T 212 m (695.54 ft) 84.8 m (278.22 ft) 42.4 m (139.11 ft) 21.2 m (69.55 ft)
Smart Event
IVS Abandoned object; missing object
Heat Map Yes
Professional, intelligent
IVS (Perimeter Protection) Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection
SMD 3.0 Less false alarm, longer detection distance
Face Detection Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting
People Counting Support the counting of enter number, leave number and pass number, and displaying and outputting yearly/monthly/daily reports.Support the counting of number in area, and 4 rules configuration. Count number of people or stay time and link alarm.Support queue management, and 4 rules configuration. Count number of people or stay time and link alarm.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2592 × 1944@(1-20 fps)/2688 × 1520@(1-25/30 fps) /1920 × 1080@(1-50/60 fps)
Sub stream: D1@(1 fps–50/60 fps)
Third stream: 1080p@(1 fps–50/60 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 2592 × 1944; 2688 × 1520; 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 32 kbps–8192 kbps
H.265: 32 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto; manual
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Illumination Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 4M resolution and lower)
Mirror Yes
Privacy Masking 8 areas
Audio
Audio Compression PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; defocus detection; scene changing; tripwire; intrusion; abandoned object; missing object; fast moving; parking detection; loitering detection; people gathering; input error; intensity change; people counting; face detection; voltage detection; people counting in area; stay detection; people number error detection; queue management
Network
Network Port RJ-45 (10/100 Enhancement Base-T)
SDK and API Yes
Cyber Security Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Interoperability ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host 20 (Total bandwidth: 80 M)
Storage FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Browser IE: IE8 and later
Chrome
Firefox
Management Software Smart PSS, DSS, DMSS
Mobile Client iOS; Android
Certification
Certifications CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Port
Audio Input 1 channel (terminal)
Audio Output 1 channel (terminal)
Alarm Input 1 channels in: 5 mA 3 V–5 VDC
Alarm Output 1 channel out: 300 mA 12 VDC
Power
Power Supply 12 VDC (±25%)&24 VAC (±30%); PoE (802.3af); ePoE
Power Consumption Basic: 4.9 W (12 VDC); 5.1 W (24 VAC); 5.2 W (PoE)
Max. (max. stream + intelligence + IR on + focus): 12.4 W (12 VDC); 11.9 W (24 VAC); 11.6 W (PoE)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤ 95%
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Protection IP67; IK10
Structure
Casing Metal + plastic
Product Dimensions Φ159 mm × 117.9 mm (6.26" × 4.64")
Net Weight 950 g (2.09 lb)
Gross Weight 1200 g (2.65 lb)
Datasheet
Product Attributes
Catalogue No
DH-IPC-HDBW5541E-ZE
Brand
Dahua
Warranty
3 Years
IR Illumination
40 Meters
Rating
IP67, IK10
Resolution
5MP
CCD Type
1/2.7" CMOS
Compression
H.265+ H.264+
