Door loop selection

Door loop selection
Variants: 30cm Flex Aluminium LoopVariants: 60cm Flex Aluminium LoopVariants: 45 cm Vandal resistantVariants: 60 cm ADL All Stainless VR Loop
Variants: 27cm Concealed Square EndsVariants: Concealed 2 pinVariants: Concealed 3 pin
Our Price:  £5.45
List Price:  £8.09
Saving Of:  £2.64 (33%)
(Exc. 20% VAT)(£6.54 Inc. VAT)

Catalogue No:  FLEX30
Brand:  CDVI

Current Item:


Click for delivery info


Special Offer:  Free delivery is available when you order £208.34 or more of selected products.

Door loop selection

CDVI door loops are required when installing an electric door lock door side. They permit the connection of power across the door frame into the door.

Many types are available from simple low cost surface loops to concealed types that are installed on the hinge side.

Door transfer contacts are also available that make electrical connections from the frame to the door at the hinge side simple. They are available as two and three contact versions and are suitable for both fail safe & fail secure electric locks.

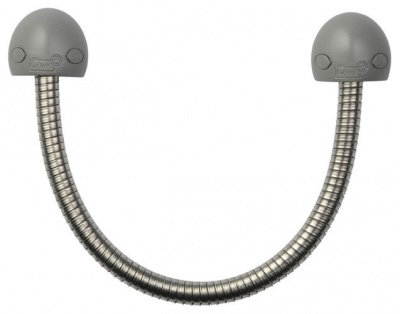

The new low cost FLEX door loop from the CDVI Group boasts cast aluminium ends with a stainless steel armoured cable.  The low cost nature with features associated with much more expensive door loops makes this the first choice. The FLEX metal door loop is ideal where power is required to travel from the frame side to the door itself.  This useful when using on the door electric locking solutions.  The door loop is available in 30CM or 60CM length options with the same high quality features.  The FLEX even features metal screw caps to hide the screw fixings that are also provided.

The range varies from the economical "Flex" through to the CDL concealed unit. All models have a metal loop for better protection, and all have an internal diameter of 7mm which is suffi cient to handle the most common cables used in door locking/control.

The new "Flex" door loops have been introduced as extremely competitive units - newly designed cast aluminium ends with concealed fi xings are features you would normally fi nd on much more expensive items.

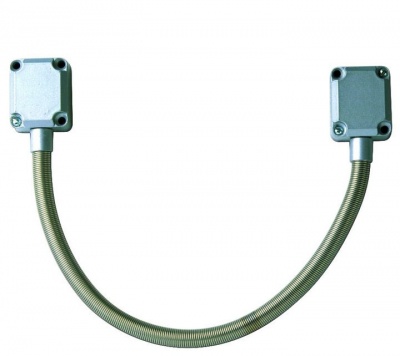

The FM is the traditional door loop, square aluminium ends with 4 fixing holes per end. This model is still the most widely used in the market.

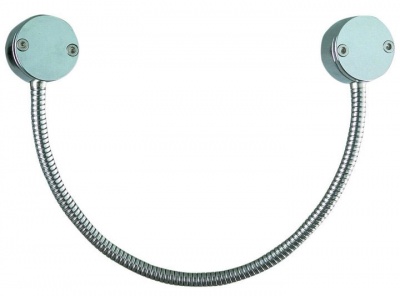

The ADL is an external door loop with the "Diax" anti vandal fixings and screws.Manufactured from Stainless Steel for vandal resistancy and Ideal for problem areas and harsh environments.

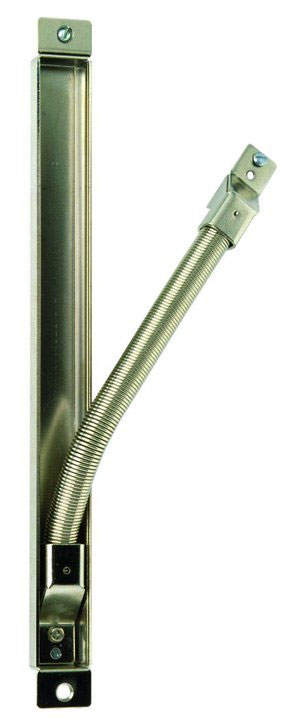

The CDL is a concealed door loop - mounted in the hinge line of the door, it is completely hidden when the door is in the closed position.
