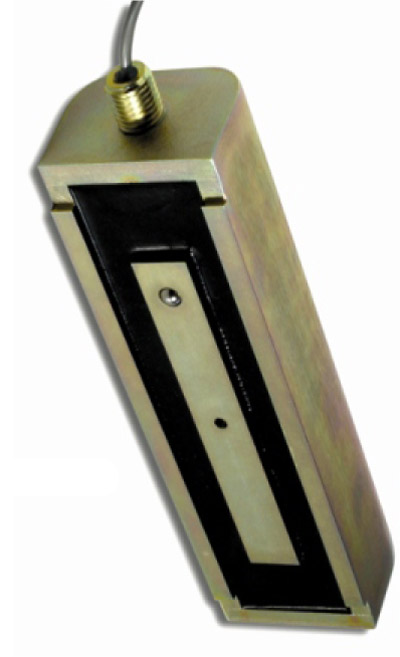

VREA800 Surface Monitored External Magnet

VREA800 Surface Monitored External Magnet
Our Price:  £367.65
List Price:  £655.22
Saving Of:  £287.57 (44%)
(Exc. 20% VAT)(£441.18 Inc. VAT)

Catalogue No:  VREA
Brand:  Diax

Current Item:


Click for delivery info


Download Data Sheet

Special Offer:  Free delivery is available when you order £250.00 or more of selected products.


External Magnetic Locks

VREA is a surface mount magnetic lock with a holding force of 800kg. Ideal for speciality locking on very large/heavy gates, particularly where wind pressure affects palisade gates. The unit is monitored as standard, and comes complete with an “L” bracket.

External Magnets are designed for securing external doors & gates. They can be used in all applications where the lock will encounter weather. CDVI external magnets feature, fully encased stainless steel for improved corrosion resistance, vertical or face fix non-handed, 20mm internal threaded gland for secure connection & 12/24V operation.

Material: Steel
Voltage: 12/24Vdc
Current: 630mA @ 12Vdc, 315mA @ 24Vdc
Dimensions: 270 x 80 x 60mm
Temperature: -20°C to +70°C
Rating: IP-67

Download Installation Manual

Product Codes

EM180 - Mortice External Magnet,180Kg, 12/24vdc
ES180 - Surface External Magnet, 180Kg, 12/24vdc
EM300 - Mortice External Magnet, 300Kg, 12/24vdc
ES400 - Surface External Magnet, 400Kg, 12/24vdc, Monitored
EM500 - Mortice External Magnet, 500Kg, 12/24vdc
ES500 - Surface External Magnet, 500Kg, 12/24vdc, Monitored
VREA800 - Surface External Magnet, 800Kg, 12/24vdc


12/24vdc (12vdc 130, 400 & 750)
630mA @ 12vdc, 313mA @ 24vdc
800mA @ 12vdc, 400mA @ 24vdc
ES/EM180 up to 130kg
EM300 up to 300Kg
ES400 up to 400kg
ES/EM500 up to 500kg
VREA800 up to 800kg
Stainless Casing
Changeover for “Locked”
