Genie CCTV LM-7323 7" Surface Mount Monitor DC12V

Genie CCTV LM-7323 7'' Surface Mount Monitor DC12V
Our Price:  £224.91
List Price:  £264.60
Saving Of:  £39.69 (15%)
(Exc. 20% VAT)(£269.89 Inc. VAT)Catalogue No:  LM-7323

Current Item:


Click for delivery info


Genie CCTV

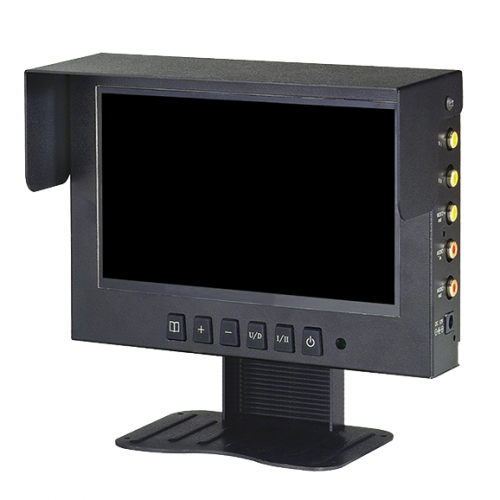

Genie CCTV LM-7323 7" Surface Mount Monitor DC12V

The Genie LM-7323 is a 7” LCD surface mount monitor with 2 video inputs and 1 video output.

Key Features

  • 2 video inputs , 1 video out
  • Left & right, up / down reverse image
  • Low power consumption
  • DC12V
  • OSD control
1.27 kg
Panel Type

Colour TFT LCD


1440 (W) x 234 (H)


50,000 hrs

Active Display Area

154.08 x 86.58 mm

Pixel Pitch

0.107 x 0.370 (W x H)

Video System

NTSC & PAL Dual System
H : 15.75 KHz
V : 60 Hz
C : 3.58 MHz

H : 15.625 KHz
V : 50 Hz
C : 4.43 MHz

Viewing Angle

Vertical: +10° / -30°, Horizontal: 45±°


500 nit

OSD Controls

Contrast, Brightness

Work Humidity

95% RH

Storage Humidity

85% RH

Work Temperature

-40°C ~ 95°C

Storage Temperature

-30°C ~ 85°C

Power Consumption

7 W maximum




195.70 x 136.20 x 36 mm


730 g

Catalogue No:  LM-7323
Brand:  Genie CCTV
