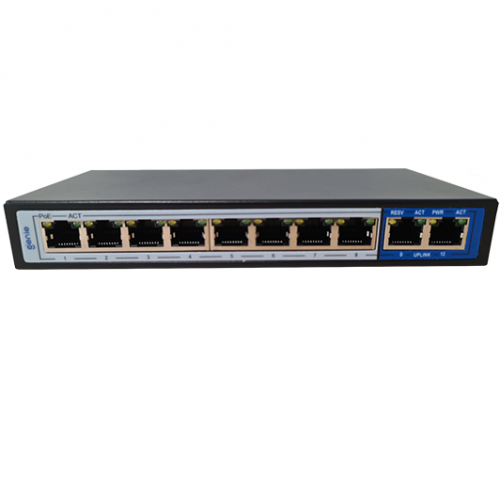

Genie IP8GESP2 10 Port Gigibit AI 8 Port PoE Switch

Genie IP8GESP2 10 Port Gigibit AI 8 Port PoE Switch
  Zoom
Our Price:  £106.25
List Price:  £125.00
Saving Of:  £18.75 (15%)
(Exc. 20% VAT)(£127.50 Inc. VAT)Catalogue No:  IP8GESP2

Current Item:



Click for delivery info

+

Genie CCTV

Genie IP8GESP2 10 Port Gigibit AI 8 Port PoE Switch

The Genie IP8GESP2 is an 8 downlink and 2 uplink port Gigibit AI PoE switch with 4 working modes, AI VLAN, AI CCTV video monitoring, AI Power and AI QoS mode.

Key Features

  • AI Extend: 1-8 port supports 250M meters long distance power supply (Cat 5 or above)
  • AI VLAN: Isolating ports 1-8 from each other, restrain network storms effectively and improve network performance
  • AI QoS: Prioritise the identified video data to make video transmission smoother
  • AI PoE: Automatic detection power of port, power off and restart the device if find dead machine
  • Plug and play, easy to use
  • Supports IEEE 802.3af/at standard, automatically detects and identifies devices that comply with the IEEE 802.3af/at standard
    and supply power to it
  • Adopt store-and-forward exchange method
  • Intelligent power supply, the lowest power consumption, ensure PD power needs
  • With power circuit protection, protect the safety of PD
  • All ports have wire-speed forwarding capability
  • No configuration characteristics of the power supply is automatically supplied to the adaptive equipment
  • Support Auto MDI/MDIX
  • Fanless design, energy saving and environmental protection; no noise, reduce the impact on the environment
  • Compact size design
  • Support port without link power saving function
Network Port

8 10/100/1000Mbps PoE RJ45 Port (Port 1~Port 8)
2 10/100/1000Mbps non-PoE RJ45 Port (Port 9~Port 10)

Transfer Rate

1000Mbps full Duplex

Network Protocol and Standard

IEEE802.3i,
IEEE802.3u,
IEEE802.3x,
IEEE802.3ab,
IEEE802.3af
IEEE802.3at

Performance

Bandwidth: 20Gbps (No block)
Frame filtering and transmission rate
10M Port maximum 14,800pps
100M Port maximum 148,800pps
1000M Port maximum 1,488,000pps

LED Indicator

Power, Resv, Link / ACT

PoE Pin

1/2(+), 3/6(-)

Power

Max. output power single port: 30W
Max. Power supply: 96W

Environment

Operating Temperature: 0°~40°C
Operating Humidity: 10%~90% (Non-condensing)

Dimensions

184 x 94 x 27mm

Weight

0.8kg

Catalogue No:  IP8GESP2
Brand:  Genie CCTV
