Honeywell HN30160216 Series 30 16CH 4k H.265 POE IP 16TB NVR

Catalogue No: HN30160216

£2,085.30

(Exc. 20% VAT)

(£2,502.36 Inc. VAT)

Special Order Item

–

Information

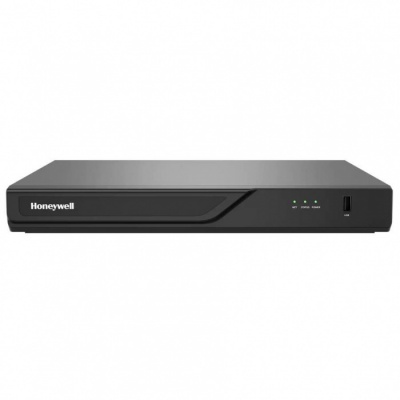

Honeywell HN30160216 Series 30 16CH 4k H.265 POE IP 16TB NVR

The 30 Series Embedded Network Video Recorder offer 4K HD (UHD) video resolution having 8 or 16 channels NVR, with multiple hard drive options and up to 20 TB of internal storage.

Key Features

H.265/H.264/MJPEG codec decoding
HDMI/VGA simultaneous video output
USB ports support Keyboard and Mouse
Supports recording a video clip of events for distribution
Supports uploading still images at the time of the event through email
Supports visual or auditory notifications (a flashing light, bell, or siren)
Supports up to 4 alarm input channels and 1 alarm relay output channels
Supports sending notifications through email, alarm out
Configurable to automatically detect and respond to motion in the scene, alarm inputs, and network failure or tampering

Specifications

Minimum Pre-recording Interval : 5second time unit
Main Processer : ARM Processor
Backup Mode Compatibility : USB Dongle (FAT Format)
ONVIF Compatibility : Yes
Playback Function : Digital zoom; Go back 10 seconds; Go forward 10 seconds; Next /previous frame; Play backwards, Regular (play, pause, stop); Speed control, Timeline, Timeline scale
Number of Relay Outputs : 1
Maximum Frame Rate : 30frames per second
For Use With : Video systems
Display Interface : HDMI x 1 (4K Max); VGA x 1 (1080P)
Maximum Number of Users : 15
Minimum Post-recording Interval : 20second time unit
Maximum Power Consumption : 340Watt
Operating System : Embedded LINUX
Sync Playback : 1-4 channels depending on the video resolution and decoding capability
Decoding : 720x576
Regulatory Approvals : CAN/CSA C22.2 No. 62368-1-14, 2nd Ed; EN50130-4: 2011+A1: 2014; EN50581: 2012; EN62368-1:2014; UL62368-1, 2nd Ed, 2014-12-01
Search Mode : Event Search; Time search
Number of Alarm Inputs : 4
Maximum Operating Humidity : 95 Percentage
Minimum Operating Humidity : 0 Percentage
Maximum Post-recording Interval : 300 second (time unit)
Power Supply : 100 to 240
Minimum Operating Ambient Temperature : -10 Degrees Celsius
Minimum Storage Temperature : -20 Degrees Celsius
Input Frequency : 50/60 Hertz (1/second)
Network Throughput : 128 megabits per second
Maximum Pre-recording Interval : 10 second (time unit)
Input Voltage : 100 to 240
Maximum Storage Temperature : 70 Degrees Celsius
Maximum Operating Ambient Temperature : 55 Degrees Celsius

Datasheet

Product Attributes

Catalogue No

HN30160216

Brand

Honeywell

Resolution

Compression

H.265 smart codec/H.264/MJPEG

Max Cameras
