Diax S400 400Kg Illuminated Surface Mag Lock

Diax S400 400Kg Illuminated Surface Mag Lock
Our Price:  £70.07
List Price:  £100.12
Saving Of:  £30.05 (30%)
(Exc. 20% VAT)(£84.08 Inc. VAT)

Catalogue No:  S400
Brand:  Diax

Current Item:


Click for delivery info

Diax Maglock Z&L Mounting Brackets SelectionDiax Maglock Z&L Mounting Brackets Selection
Thread Lock for securing Maglock fixingsThread Lock for securing Maglock fixings


Download Data Sheet

Special Offer:  Free delivery is available when you order £208.34 or more of selected products.

S Series DIAX Illuminated/Audible Mag Locks

The ever popular series of the DIAX brand of S-Series surfaces magnetic locks have been redesigned to include illuminating ends and in one new model sound annunciation when the lock is unlocked.

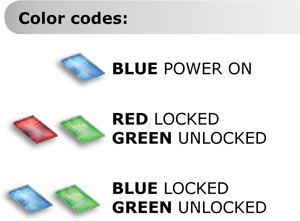

With lock confirmation and full bi-colour monitoring illumination in the range these changes are sure to be welcomed.

These new surface magnet products are available as 300, 400 & 500KG holding force types as before, with relay monitored and unmonitored versions but all having end illumination.

Trust CDVI to innovate and add more features to their locking products at no extra cost to you the customer.

Key Features

  • Visual and Audible Feedback (depending on model selected)
  • Security catch ropes included
  • Holding force: 300, 400 and 500KG
  • High resistance to corrosion
  • Security ropes
  • Fit all CDVI’s standard brackets
  • 5 years warranty

Table of locks

Code Description Kg Holding Monitoring Dimensions Voltage Current
M180 Mortice Magnet 180Kg No 206 x 32 x 25mm 12/24Vdc 630/315mA
P335ER Mortice Magnet, Multi-Fix 300Kg Yes 215 x 35 x 25mm 12/24Vdc 630/315mA
M300(M) Mortice Magnet 300Kg Yes 229 x 38 x 27mm 12/24Vdc 630/315mA
M400(M) Mortice Magnet 400Kg Yes
229 x 44 x 30mm 12/24Vdc 630/315mA
M500 Mortice Magnet 500Kg No 288 x 64 x 38mm 12/24Vdc 630/315mA
S180 Surface Magnet 180Kg Yes 168 x 33 x 20mm 12/24Vdc 630/315mA
S300(M) & ECS5000(M)
Surface Magnet 300Kg Yes 253 x 46 x 27mm 12/24Vdc 630/315mA
SD300(M) Surface Double Magnet 300Kg per side Yes
506 x 46 x 27mm 12/24Vdc 630/315mA
S400(M) Surface Magnet 400Kg Yes 253 x 49 x 29mm 12/24Vdc 630/315mA
S500(M) & ECS8000(M)
Surface Magnet 500Kg Yes 272 x 65 x 41mm 12/24Vdc 630/315mA
SD500(M) Surface Double Magnet 500Kg per side Yes
544 x 65 x 41mm 12/24Vdc 630/315mA
