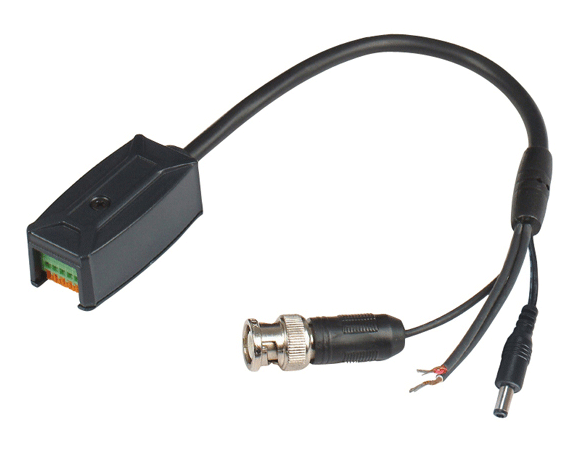

Genie CCTV GTP005VPD Passive Balun Video Camera power Data

Genie CCTV GTP005VPD Passive Balun Video Camera power Data
Our Price:  £9.85
List Price:  £18.00
Saving Of:  £8.15 (45%)
(Exc. 20% VAT)(£11.82 Inc. VAT)

Catalogue No:  GTP005VPD
Brand:  Genie CCTV

Current Item:


Click for delivery info

Genie CCTV

Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

GTP005VPD Passive Baluns

Product Overview

Passive Balun, Requires No Power, Male BNC with 2 mini-coax pigtail to 6 "push in" terminal, Video, Camera power, Data (RS422, 485) transmission over one standard CAT 5 cable.

Key Features

Genie’s “Smart Cabling” passive Baluns are designed for use with Category 5e Unshielded Twisted Pair (UTP) cable. UTP cable is more flexible than traditional coaxial cable, is lower cost and has better transmission qualities. Passive baluns do not require any power source and match the 75Ω impedance of coaxial cable to the 100Ω impedance of UTP cable. Passive Baluns can transmit and receive full motion composite video signals up to 300 metres in Colour and 600 metres in Monochrome.

  • Impedance Matching 75Ω Coaxial to 100Ω Twisted Pair
  • Transmits/receives Composite Video Signals
  • Transmits Video and 12V DC Power up to a Distance of 50 Metres
  • Balun is Supplied with 2.1mm Power Plug Connector
  • BNC Male to RJ45 Jack for Video Connection
  • For use with Category 5, 5e & 6 UTP (Unshielded Twisted Pair) Cable. Wire Gauge 24awg
  • Uses One Twisted Pair for a Single Composite Video Signal
  • Uses One Twisted Pair for 12V DC Power

Technical Specification

Model Number
 Video Input (BNC Connector) 1
 Video Input 1V p-p, 75 Ohms
 Transmission Distance 600M (B/W), 400M (COLOR)
 Data Connector 1
 Cable Twisted Pair CAT5 (AWG24)
 Power v
 Dimension (W x H x D) 65 x 25.4 x 25.4 with 25cm cable
