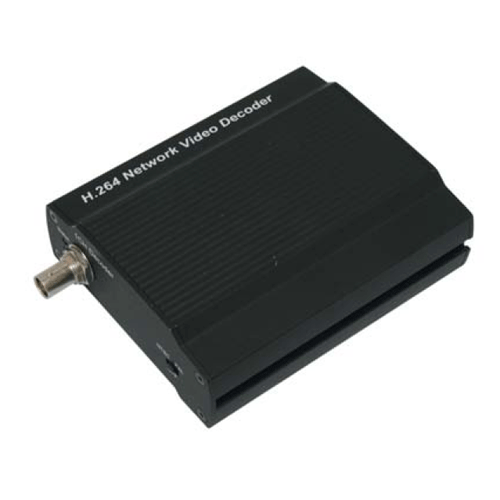

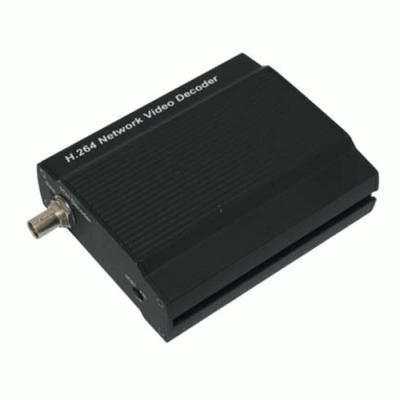

Ganz ZN-R1000E Single Network Video Decoder H.264

Ganz ZN-R1000E Single Network Video Decoder H.264
  Zoom
Our Price:  £415.24
List Price:  £740.03
Saving Of:  £324.79 (44%)
(Exc. 20% VAT)(£498.29 Inc. VAT)
–+

Catalogue No:  ZN-R1000E
Brand:  Ganz

Current Item:



Special Order Item - Contact us

Ganz

Special Offer:  Free delivery is available when you order £250.00 or more of selected products.

Ganz ZN-R1000E Single Network Video Decoder H.264

Single Channel Display up to D1 Resolution, Quad display @CIF Resolution

  • H.264 D1 or CIF Resolution
  • Video Decompression: H.264, MPEG-4, MJPEG
  • Single or Quad Display
  • On Screen Display
  • 1 channel Audio Input/Output
  • Simple to Install, no PC required, Mouse setup with Video Monitor
  • Remote firmware upgrade over the network

Output
1 BNC Connector (NTSC / PAL)
Video Display
Single view up to D1 resolution, Quad View in CIF resolution
Decompression Format
H.264, MPEG-4, MJPEG
Resolution
D1, CIF
Decompression FPS
25/30 fps@D1 100/120 fps@CIF
OSD Configuration
Display Network setup screen Display Connection Information
Audio Input
1 channel
Audio Output
1 channel
Audio Compression Format
G.711
Digital Input2
Digital Output
2
Serial port
RS-485, RS232C
Network
10 / 100 Base-T
Protocol
TCP/IP, UDP/IP, HTTP, RTSP, RTCP, RTP/UDP, RTP/TCP, SNTP, mDNS, UPnP, SMTP, SOCK, IGMP, DHCP, DDNS, SSL v2/v3, IEEE 802.1X, SSH
USB 2.0
External storage, Wireless LAN
Power Source
12V DC (DC Jack)
Power over Ethernet
Support (IEEE 802.3af)
Power Consumption (Approx)
240 mA @ +12V
Operating Temperature
0C ~ 60C (32F ~ 140F )
Operating Humidity
Up to 85% RH (Non-condensing)
Dimension
103(W) x 38(H) x 141(D) mm
Weight (Approx)
385 g
