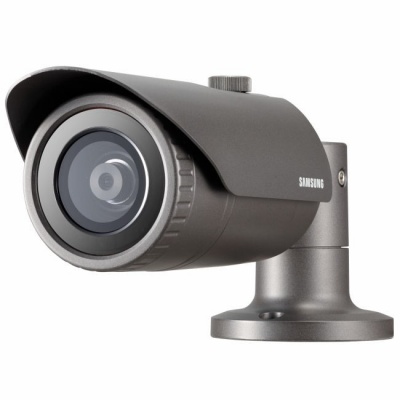

Samsung Techwin QNO-6020R 2 Megapixel Full HD Network IR Bullet Camera

Samsung Techwin QNO-6020R 2 Megapixel Full HD Network IR Bullet Camera
  Zoom
Our Price:  £137.87
List Price:  £252.00
Saving Of:  £114.13 (45%)
(Exc. 20% VAT)(£165.44 Inc. VAT)Catalogue No:  QNO-6020R

Current Item:



Click for delivery info

+

Samsung

Samsung Techwin QNO-6020R 2 Megapixel Full HD Network IR Bullet Camera

The QNO-6020R from Hanwha's Q Series affordable network camera line is a 2MP bullet network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 3.6mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).

Key Features

• Max. 2M (1920 x 1080) resolution
• Built-in 3.6mm fixed lens
• Max. 30fps@all resolutions (H.265/H.264)
• H.265, H.264, MJPEG codec supported, Multiple streaming
• Motion detection, Tampering, Defocus detection
• micro SD (128GB) memory slot, PoE / 12V DC
• IR viewable length 25m
• Hallway view, WiseStream support, IP66, IK10
• LDC support (Lens Distortion Correction)

Specification


Video
Imaging Device 1/2.9" 2.19M CMOS
Total Pixels 2,000(H) x 1,121(V)
Effective Pixels 1,984(H) x 1,105(V)
Scanning System Progressive
Min. Illumination Color : 0.15Lux, B/W : 0Lux (IR LED on)
Lens
Focal Length (Zoom Ratio) 3.6mm fixed
Max. Aperture Ratio F1.8
Angular Field of View H : 86.48˚ / V : 46.22˚ / D : 102.44˚
Lens Type Fixed
Mount Type Board type
Operational
IR Viewable Length 25m (82.02ft)
Camera Title Off / On (Displayed up to 20 characters per line)
- W/W : English / Numeric / Special characters
- China : English / Numeric / Special / Chinese characters
- Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution
Day & Night True Day & Night
Backlight Compensation Off / BLC / WDR
Wide Dynamic Range 120dB
Digital Noise Reduction SSNR (Off / On)
Motion Detection Off / On (4ea polygonal zones)
Privacy Masking Off / On (6ea rectangular zones)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
LDC (Lens Distortion Correction) Off / On (5 levels with min / max)
Electronic Shutter Speed Minimum / Maximum / Anti flicker
Flip / Mirror Flip / Mirror / Hallway view
Intelligent Video Analytics Motion detection with metadata, Tampering, Defocus detection
Alarm I/O Input 1 / Output 1
Alarm Triggers Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection
Alarm Events File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output
Pixel Counter Support (Plug-in viewer only)
Network
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.265, H.264, MJPEG
Resolution 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240
Max. Framerate H.265/H.264 : Max. 30fps at all resolutions, MJPEG : Max. 15fps
Smart Codec WiseStream
Video Quality Adjustment H.265/H.264 : Target bitrate level control, MJPEG : Quality level control
Bitrate Control Method H.265/H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 3 profiles)
Audio I/O Line in
Audio Compression Format G.711 u-law / G.726 selectable
G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
Audio Communication Uni-directional audio
IP IPv4, IPv6
Protocol TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
Security HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
Streaming Method Unicast / Multicast
Max. User Access 6 users at unicast mode
Storage micro SD/SDHC/SDXC max. 128G, NAS
- Motion images recorded in the SD memory card can be downloaded
- Manual recording at local PC
Application Programming Interface ONVIF Profile S/G, SUNAPI (HTTP API)
Webpage Language English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Turkish, Polish, Czech, Dutch, Hungary, Greek
Web Viewer Supported OS : Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11
Plug-in free Webviewer
- Supported Browser : Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported Browser : MS Explore 11, Mozilla Firefox 43, Apple Safari 9 * Mac OS X only
Central Management Software SmartViewer
Environmental
Operating Temperature / Humidity -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C (-4°F)
Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection IP66
Vandal Resistance IK10
Electrical
Input Voltage / Current PoE (IEEE802.3af, Class3) / 12V DC
Power Consumption Max. 7W (PoE), Max. 6W (12V DC)
Mechanical
Color / Material Dark gray / Metal
Dimensions (WxH) Ø70.0 x 246.0mm (Ø2.76" x 9.69") (Without sunshield)
Weight 730g (1.61 lb)
