Catalogue No: 6557Brand: Fermax
Special Order Item - Contact us

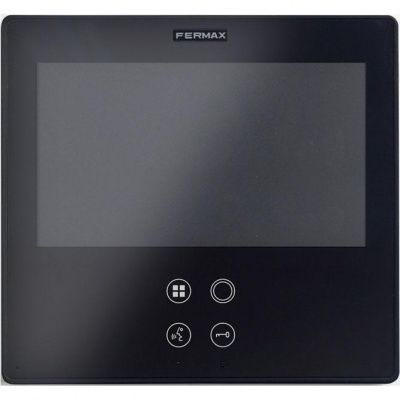

Video door entry COLOUR monitor. TFT screen 7".
Installed in homes, lets you communicate with the outside panel, open the door and see the visitor on the built-in screen .
Smile is a new video entry experience.
It is cool and smart. With a design that allows its perfect integration in any surrounding.An advanced management monitor, with hands-free communication, high-performance features and user friendly.Compact and essential design. Its TFT screen and its capacitive touch buttons remain behind an ultra-resistant transparent polycarbonate sheet with ultraviolet protection.
Smile is the result of a refined design which has reduced and stylized its components to the minimum expression.
VDS system:Simplified installation audio and video door entry system that does not use house call wires. The call is made by transmission of a digital call code generated by the VDS amplifier.- In new works, installation can be carried out with the following type of wiring: 5 wire / 3 wire + Coaxial (video).Lets you manage up to 199 homes, 2 entrance accesses and a central guard unit.Maximum distance from first access to last home: 200 m.
VDS amplifier comes with voice synthesizer as standard issue.When the door release is activated a message is heard: “Door open, please close after entering".The home terminals require simple programming done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor).Communication is private.Wiring. Audio: 3-wire bus. Video: 5 wire / 3 wire + Coaxial (video).Maximum distance from first access to last home: 200 m.
Colour 7” TFT screenResolution: 800 (H) x 480 (V)SurfaceSurface mounted, super slimline profile stands out only 20 mm from the wall.Smile 7” 185x172x20 (width) x (height) x (depth) mm
FlushWhen Smile is flush-mounted, only 4 mm of its profile stands out. This type of installation uses the same terminal, incorporating only flush box and decorative frame.
Dimensions once flush-mounted:Smile 7” 209x196x4 (width) x (height) x (depth) mmDecorative frame 7” 209,20x196,2(width) x (height) x (depth) mmFlush box 7” 198x186x44(width) x (height) x (depth) mm
Consumption:- in standby: 33 mA- active: 400 mA
