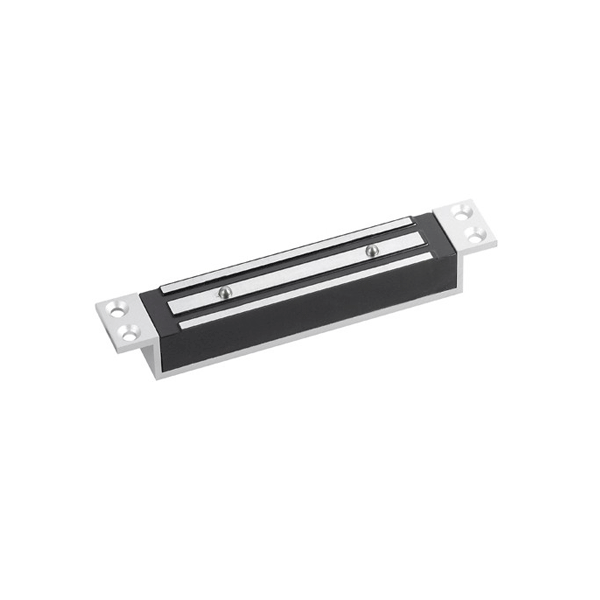

SSP Mortice Micro Shearlock Monitored 12/24VDC

SSP Mortice Micro Shearlock Monitored 12/24VDC
Our Price:  £129.43
List Price:  £236.59
Saving Of:  £107.16 (45%)
(Exc. 20% VAT)(£155.32 Inc. VAT)

Catalogue No:  GS200M
Brand:  SSP

Current Item:


Click for delivery info

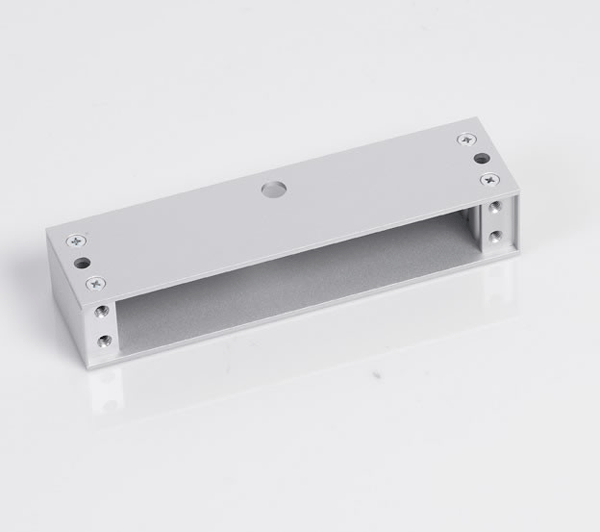

SSP GS200H Surface Housing for GS200 GS200M ShearlockSSP GS200H Surface Housing for GS200 GS200M Shearlock

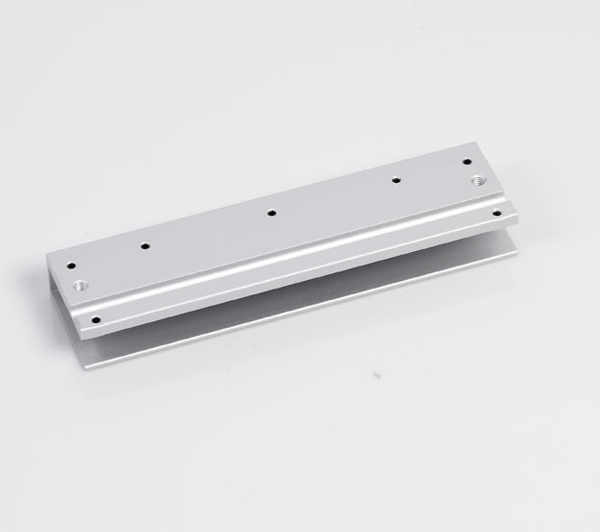

SSP GS200GH Glass Door Saddle for GS200H HousingSSP GS200GH Glass Door Saddle for GS200H Housing


Special Offer:  Free delivery is available when you order £208.34 or more of selected products.

SSP GS200M 545Kg Mortice Shearlock

GEM Mini Shear Lock locks by seating two conical locking bolts located on opposite corners of the Armature Plate into matching keep holes on each end of the Electromagnet body.
The GEM Shear Locks never bind under pressure, are not sensitive to door alignment, and do not require door position sensing or auxiliary timing circuitry. They are ideal for swing through doors and sliding doors as well. A unique benefit of the GEM Shear Locks' physical design is that they function equally well on doors that swing to close or doors that slide to close.
The GS-200 series is available in two models, GS-200
Unmonitored or the GS-200M with hall effect monitoring. The units are design for use with metal door frame, fitted to either, wooden, aluminum, or glass doors with the assistance of various housings. This manual gives a guide to all of the above applications and other useful installation information.
The GS-200 provide up to 1200 pounds shearing force and fully concealed mounting, combine the best in failsafe performance with the most advanced features.

  • Voltage Tolerance: 10%
  • Current Draw: 420mA@12 VDC; 210mA@24 VDC
  • )at temperature 20 C(
  • Magnetic bond sensor monitor output (GS-200M)
  • (SPDT rated 3A@30VDC), indicates the door locked
  • or unlocked status.
  • Operating Temperature: -30~+55 C
  • Humidity: 0~95% non-condensing.
  • Lock's surface Temperature (when the power is on):
  • <current temperature +20 C
  • Holding Force: Up to 1200 lbs (545 Kg) in shear.
  • The Gap between the Lock and Armature plate is 2 mm
  • Special Finishes for magnet and armature plate: Zinc
  • Epoxy Potting Compound: E87252 (S), UL94V-0
  • Weight )Approx.(: 1.2 Kg
