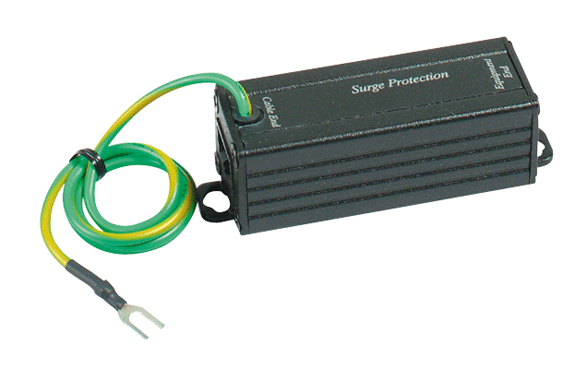

GSP03 Twisted Pair Surge Protector
Product Overview
Twisted Pair Surge Protection Device, 2 x RJ45 Connector - Two Pair Protection.
Key Features
- Protects Equipment from High Voltage Surges, e.g. Nearby Lightning Strikes.
- Two Stage Protection: Under 100ns – 90V, Over 100ns-12V.
- RJ45 Jack to RJ45 Jack
- Two Pair Protection, Category 5, 5e and 6 UTP Cable – Pair 2 and Pair 4
These devices provide protection from high voltage surges such as nearby lightning strikes. The devices shunt high voltage transients to ground and prevent them from passing onto sensitive electronic equipment such as VCR’s, DVR’s, Cameras and Multiplexers.
Technical Specification
Model Number
| GSP03
|
| Protection Attack Time | 100 ns |
| Maximum Surge Current | 5000A |
| Life | 300 Surges of 100Amps |
| Normal Resistance Across Coax | 10000 M Ohm |
| Surge Resistance | Approx. 0 Ohm |
| Power Passing Capability | DC 90V AC 90Vp-p 65V rms @ 10 Amps |
| Insertion Loss | Less than 0.2 dB |
| Return Loss (75 Ω) | 16dB |
| Connectors | RJ45 |
| Dimensions (W x H x D ) | 25 x 25 x 85 mm |
| Weight | 90g |
